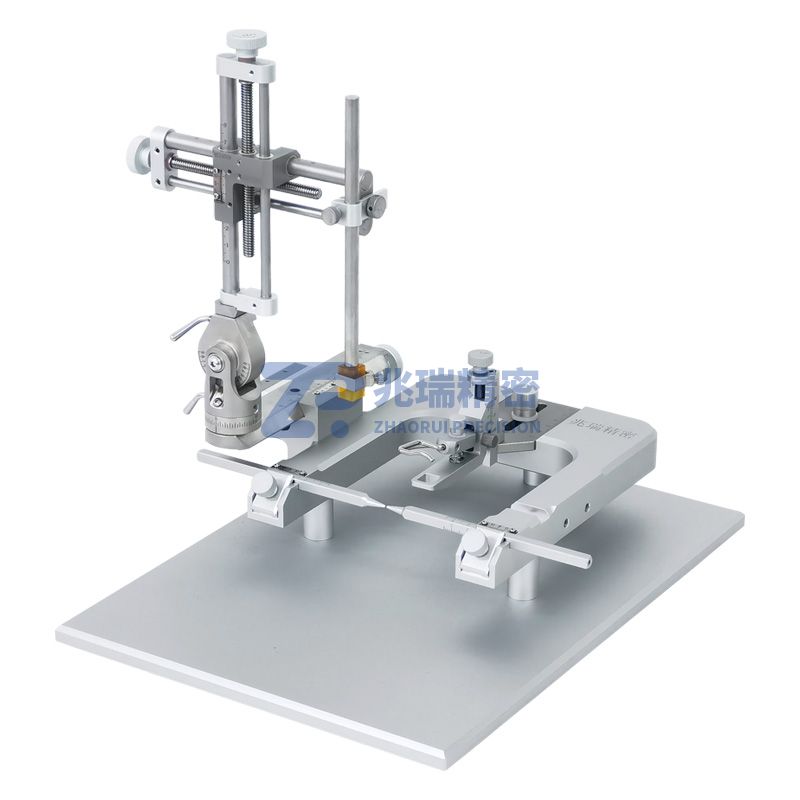

Z5001 Standard Brain Stereotaxic Instrument

The brain stereotaxic instrument is a device used for positioning and fixing the head of experimental animals. During experiments, the brain stereotaxic instrument is first used to fix the animal's head to prevent any relative movement. Then, a three-dimensional coordinate system defined by external landmarks on the animal's skull or other reference points is adopted, and combined with the brain stereotaxic atlas of the experimental animal to determine the position of certain subcortical neural nuclei (such as the hippocampus). This enables directional stimulation, destruction, drug injection, guidance and positioning of the neural nuclei under study without direct visual exposure. It can be used in the establishment of Parkinson's disease animal models, epilepsy animal models, intracranial tumor models, as well as research on learning and memory, intracerebral neural stem cell transplantation, cerebral ischemia, etc.

The Z5001 Standard Brain Stereotaxic Instrument of Zhaorui Precision Technology adopts a universal U-shaped base open structure, which facilitates multi-angle operations. It is suitable for a variety of animal experiments (rats, mice, lizards, birds, cats, guinea pigs, etc.). The operating arm that can rotate 180 degrees vertically and 360 degrees horizontally provides researchers with flexible and accurate positioning. Meanwhile, it is equipped with various specifications of probes and electrode fixing holders, and customized fixing holders can be provided according to different experimental requirements of users to meet various experimental needs.

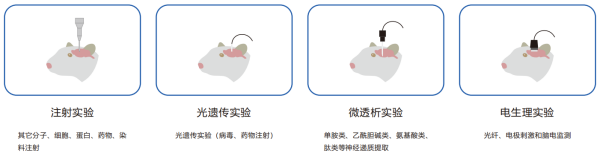

Typical Applications

Technical Parameters

1. Suitable for brain positioning of rats and mice
2. XYZ three-axis movement range: 0-80mm, reading accuracy: 0.1mm
3. Accurate positioning in three-dimensional space and angular rotation adjustment are available
4. Can rotate 180 degrees vertically and lock at any position at any time
5. Enables precise positioning and placement of various electrodes or catheters
6. Optional adapters for different animals: rats, mice, birds, cats, rabbits, geckos, guinea pigs, etc.
7. Can be used with micro syringe pumps, microscopic imaging devices and cranial drills
8. Concise and exquisite appearance, convenient and flexible installation and adjustment methods
9. To prevent misoperation, a one-key locking mechanism is added in the Y direction (to prevent misoperation during experiments)
10. One-key zero return design of the rotating base (to ensure the verticality of the cross arm)

Configuration List

Optional Configurations

Selection Guide

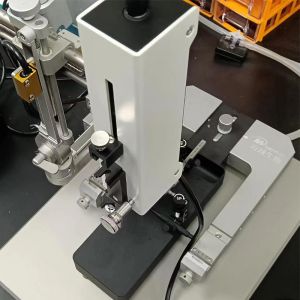

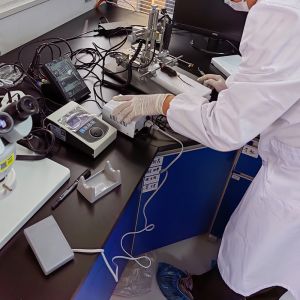

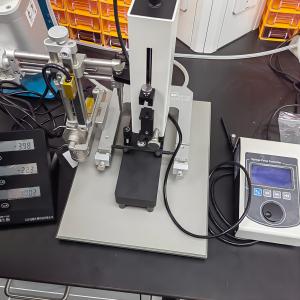

Installation Examples
