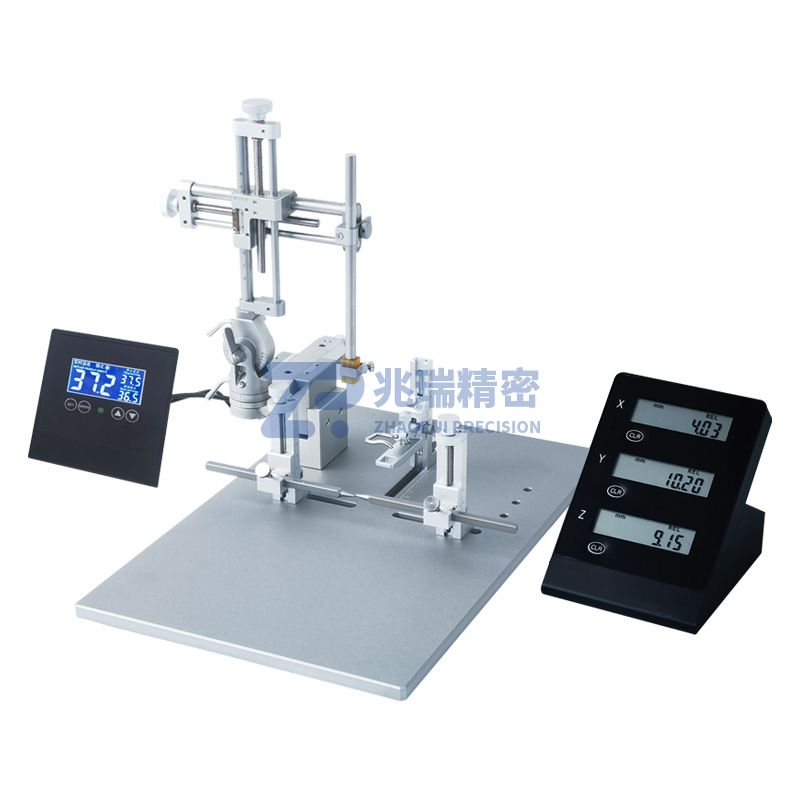

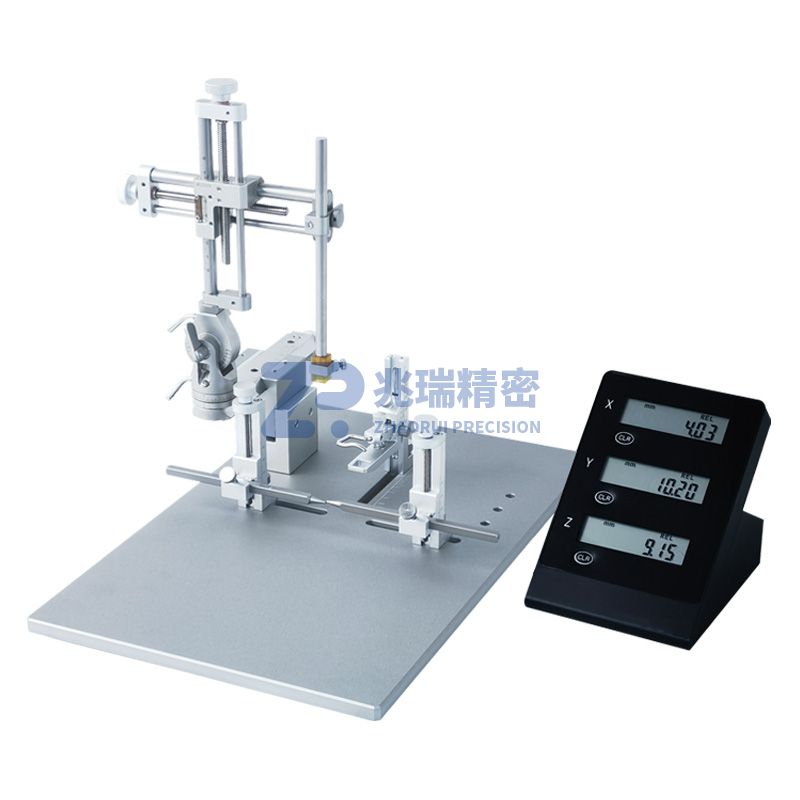

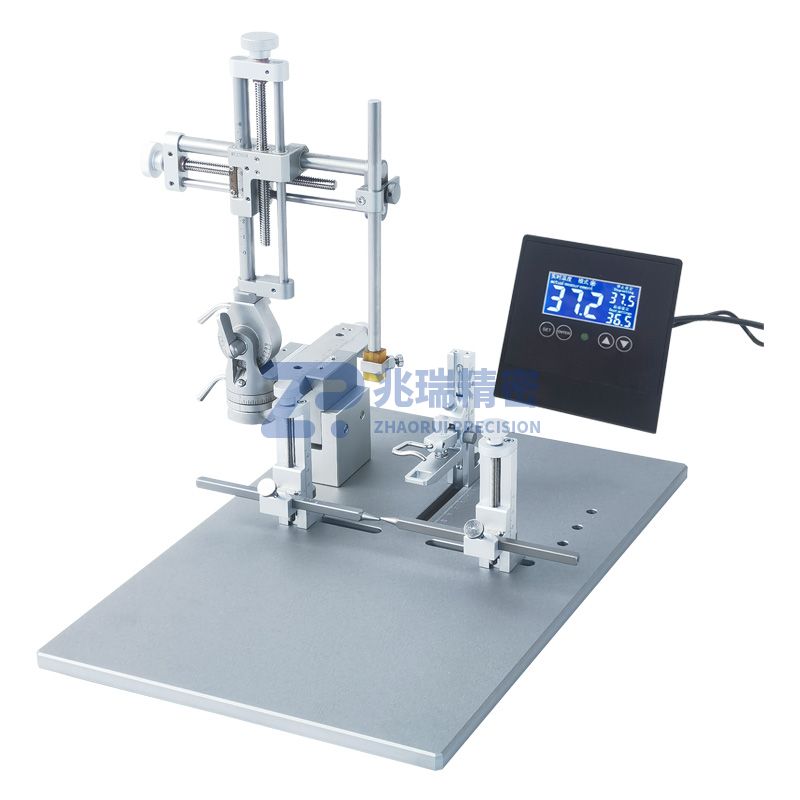

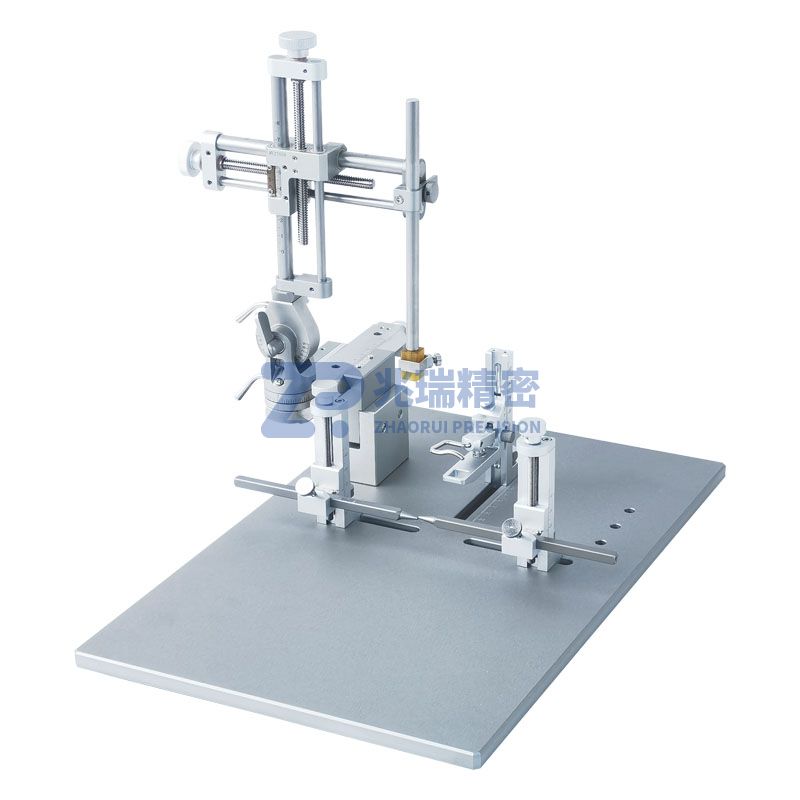

Z5051 Portable Lightweight Brain Stereotaxic Instrument

The brain stereotaxic instrument is a device used for positioning and fixing the head of experimental animals. During the experiment, the animal's head is first fixed with the stereotaxic instrument to prevent any relative movement. Then, a three-dimensional coordinate system defined by external landmarks on the animal's skull or other reference points is used, and combined with the brain atlas of the experimental animal, the positions of certain subcortical neural nuclei (such as the hippocampus) are determined. This allows directional stimulation, destruction, drug injection, guidance positioning and other operations on the studied neural nuclei without direct visual exposure. It can be used for the establishment of Parkinson's disease animal models, epilepsy animal models, intracranial tumor models, as well as research on learning and memory, intracerebral neural stem cell transplantation, cerebral ischemia, etc.

The Z5051 Portable Brain Stereotaxic Instrument eliminates the U-shaped bracket, and the mouse adapter is directly combined with the base plate, providing a spacious and open space for the experiment, which facilitates the experimenter to perform head positioning operations on mice.

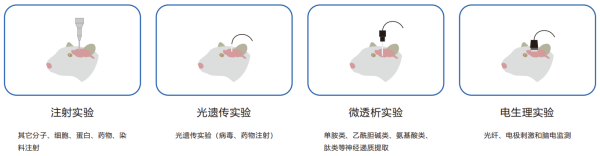

Typical Applications

Technical Parameters

1. X-axis Rotation: -90°~90°
2. Z-axis Rotation: -90°~90°
3. X, Y, Z-axis Adjustment Range: 0~80mm
4. Adjustment Precision: 10um
5. The rotary stereotaxic instrument can be freely configured with single arm or double arm, single-arm digital display or double-arm digital display for simultaneous recording and stimulation
6. Equipped with different ear bars and adapters, it can be applied to experiments on mice, rats and other small animals
7. Large Base Plate Size: 400×255mm
8. Ear bars are with scale lines (precision 0.1mm) for convenient balancing and fixing operations
9. Ear bars adopt double-head insertion and fixing method (18° blunt head and 60° blunt head mouse ear bars) to prevent damage to the skull
10. The operating arm can move up and down, left and right, back and forth up to 80mm; it can rotate 180° vertically and lock at any position at any time, and rotate 360° horizontally and lock at any position at any time
11. It can be used with micro syringe pumps, micro camera devices and cranial drills; the laser scale and open U-shaped base design make reading more convenient; the double-head lead screw design makes the up-down, left-right and back-and-forth movement of the operating arm more accurate and smooth
12. The scale components processed by special technology eliminate the fatigue caused by reading; the head of the animal adapter adopts a curved design, which makes the fixation of the animal's head tighter

Configuration List

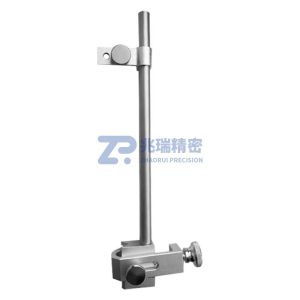

Optional Configurations

Selection Guide

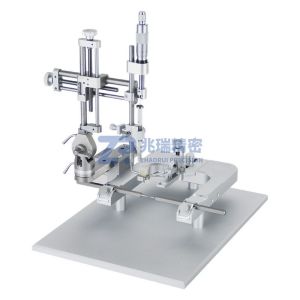

Installation Examples
