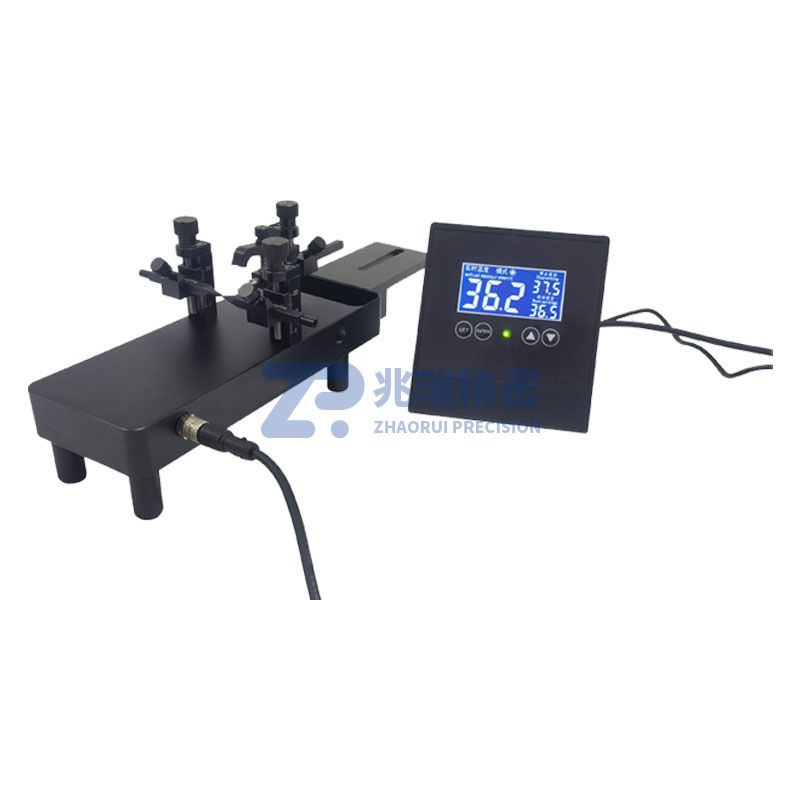

Z03 Thermostatic Adapter for Mice and Young Rats

The Z03 Adapter for Mice and Juvenile Rats is newly equipped with a constant temperature function, featuring fast heating and a safe 12V voltage supply.

The ear bars of this adapter are made of resin, with their tips processed into an appropriate taper. This design not only firmly clamps the mouse's head but also avoids skull damage that may be caused by stainless steel ear bars. The height of the ear bars on both sides and the height of the incisor clamp can be freely adjusted with scale markings, making it suitable for experiments conducted at different angles.

Typical Applications

1. Used with stereotaxic instruments: applicable for positioning, injection, electroencephalogram (EEG) recording, brain imaging and other related experiments;
2. Used independently: for fixing the head when conducting further experiments on parts such as the legs and back.

Technical Parameters

1. Adopts the "clamping incisors, pressing nasal bridge, inserting ear canals" method to fix the mouse's head;
2. Ear bar adjustment: smooth fine-tuning is available for both vertical and horizontal positions;
3. Nasal-mouth clamp adjustment: smooth fine-tuning is available for both vertical and front-back positions;
4. The adjustment of ear bars and nasal-mouth clamp follows a three-step process: loosen the screw --- push the ear bar --- tighten the screw, which reduces repeated "loosening-tightening" operations and improves efficiency;
5. Both the vertical adjustment of ear bars and nasal-mouth clamp are equipped with scale markings.
