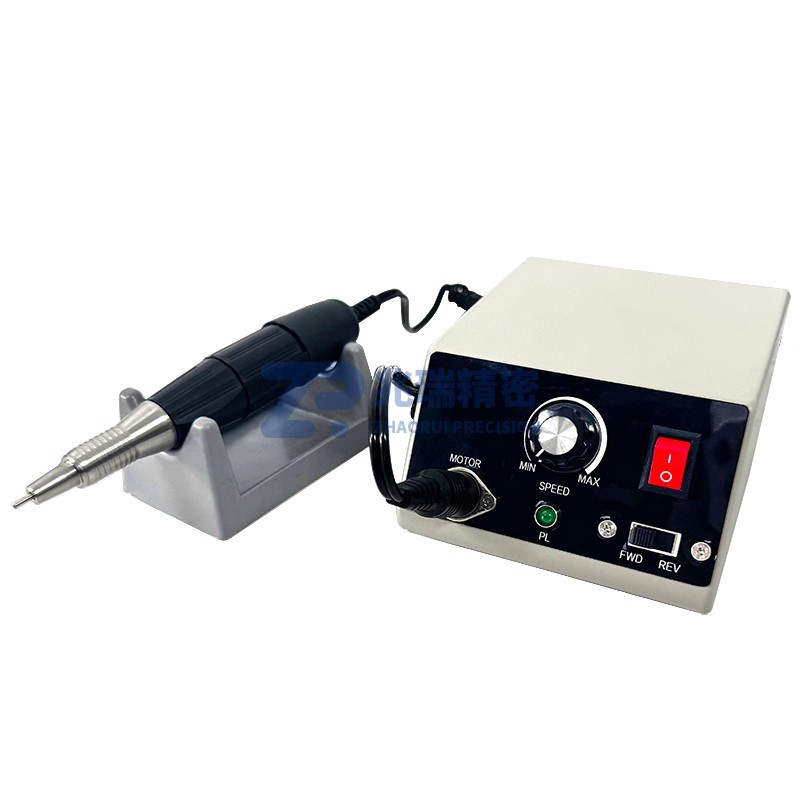

Z5202 Cranial drill

       The cranial drill is an important precision instrument commonly used in medical and scientific research fields. It is used for cranial drilling surgery and can provide accurate and efficient support for cranial drilling procedures. It consists of a handheld electric drill and drill bits of different sizes. It is mainly used for brain stereotaxic positioning and electrode implantation of experimental animals in neurosurgery, brain science research, and preclinical life science experiments.

       Cranial drills are usually driven by high-speed electric motors and can drill holes quickly and accurately. The design and material selection of the drill bit can ensure good cutting effect and avoid damage to surrounding tissues. The cranial drill is easy to operate. Doctors or researchers can select drill bits of different sizes and shapes according to needs, and control the depth and speed of drilling by adjusting the rotational speed and feed rate of the drill bit.

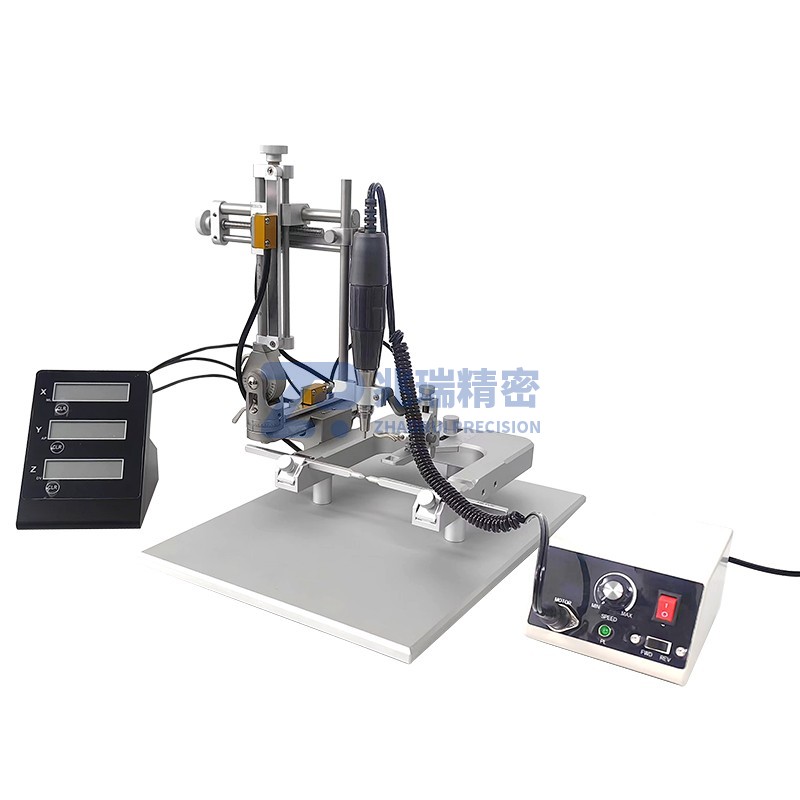

       The Z5202 cranial drill brain stereotaxic instrument only takes one second to drill a hole in the skull, with simple operation and easy mastery. Different types of drill bits can be used for drilling and reaming the skull of animals such as mice, rats, cats, and rabbits.

Technical Parameters

1. Power Supply: AC220V±10% 50HZ
2. Power: 65W
3. Motor Speed: The speed regulation range of ordinary cranial drill is 0~35000RPM, and that of high-speed cranial drill is 0~50000RPM
4. Allowable Motor Voltage: DC8~20V
5. Maximum Locked-Rotor Current: 3A
6. Working Environment: Temperature: 5~40℃; Relative Humidity: ≤80%
7. Foot Switch Service Life: ≥10 million times
8. Power Supply Box Working Mode: Continuous mode
