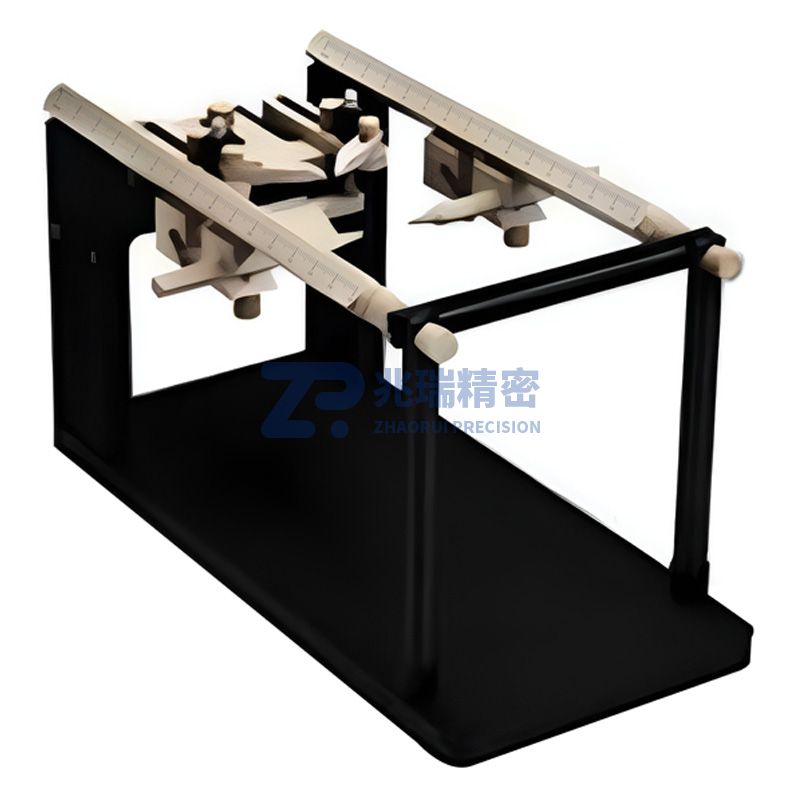

Z5071 Dog and Monkey Magnetic Resonance Imaging (MRI) Stereotaxic Instrument

The Dog and Monkey Magnetic Resonance Imaging (MRI) Stereotaxic Instrument adopts a three-dimensional coordinate system defined by external skull landmarks or other reference points to determine the position of corresponding subcortical neural structures. This enables directional stimulation, destruction, drug injection, and potential guidance research without direct visual exposure of the target area. As an important research device in the fields of neuroanatomy, neurophysiology, neuropharmacology, and neurosurgery, it is applicable for directional injection, stimulation, and destruction of neural structures, as well as drug delivery and potential guidance. It can be used in the establishment of animal models for Parkinson's disease, epilepsy, and intracranial tumors, along with research on learning and memory, intracerebral neural stem cell transplantation, and cerebral ischemia.

The dog/monkey adapter securely immobilizes the animal by embedding conical ear bars into the front of the animal's auditory organs. Adjustable orbital pressure rods and a palatal fixation plate are used to prevent skull rotation. All components of the MRI stereotaxic instrument are made of specific non-metallic materials, which are specially designed for use in magnetic resonance environments while ensuring reliable fixation, thus meeting the unique requirements of accurate positioning in brain science research.

Technical Parameters

1. Applicable for head fixation and positioning of large animals such as dogs and monkeys

2. Material Feature: Full plastic construction

3. Cross-sectional dimension of guide rails on both sides: 19.00mm(W) x 19.00mm(H); Guide rail length: 325mm

4. Center distance between two guide rails: 178.5mm

5. The 0-scale line of the guide rail is aligned with the center line of the ear bar

6. Scale range at both ends of the 0-scale line of the guide rail: ±100mm, accuracy: 1mm; Distance between the 0-scale line of the guide rail and the tail end: 120mm

7. Base plate dimension: 420mm(L) x 200mm(W)

8. Front and rear adjustment range of the orbital pressure rod: 95mm

9. Front and rear adjustment range of the palatal fixation plate: 80mm; Vertical adjustment range: 35mm

10. Front and rear adjustment range of the adapter: 40mm
