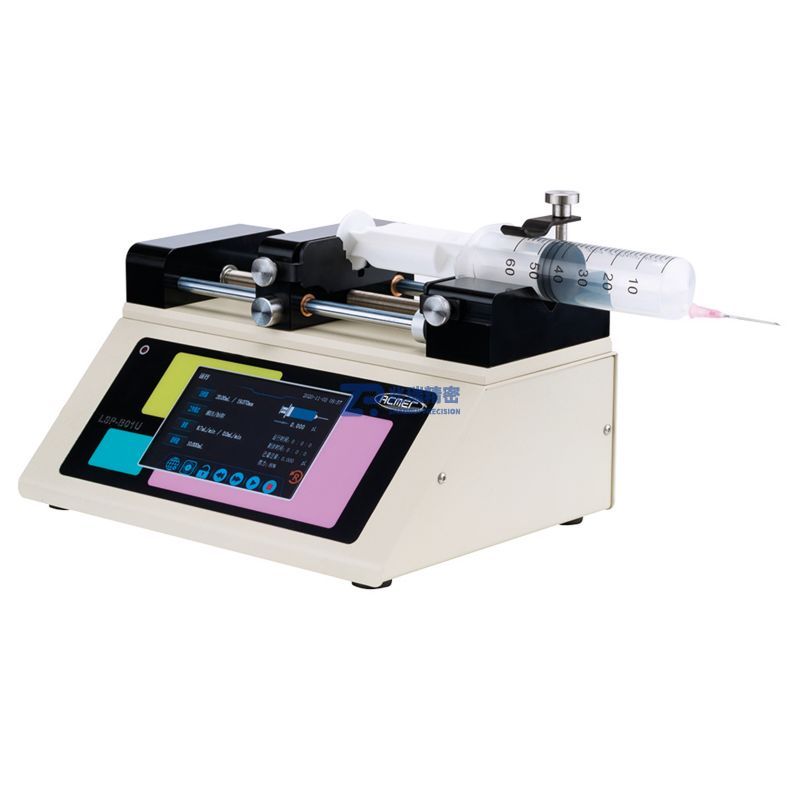

Z5263 High-precision Microinjection Pump

In stereotaxic instrument operations, microinjection on animals is often required. The automatic microinjection pump is easy to use: directly install the syringe barrel to the holder, and control the precise movement of the syringe piston through the microcomputer-controlled drive unit to inject or withdraw liquid from experimental animals, avoiding errors caused by catheter methods.

The Z5263 high-precision microinjection pump features a high-definition touch screen operation and Ditronstep micro-step control system. It is a device used to accurately control and deliver micro-volume liquid drugs or solutions. It is usually used with stereotaxic instruments or micromanipulators in the medical field, especially in clinical medicine, laboratory research, and drug development. This injection pump is compatible with most imported and domestic microsyringes (0.5μL-100mL), with a stroke resolution of 0.012μm/μstep and a linear velocity range of 0.015μm/min ～30.77mm/min (flow rate = linear velocity × inner cross-sectional area of syringe), and a maximum propulsion distance of 150mm.

Functional Features

1. Working Modes: Perfusion, Aspiration, Perfusion/Aspiration, Aspiration/Perfusion, Continuous, Multiple Perfusion

2. Touch Display: 5-inch high-definition touch screen, simple, clear, easy to understand and operate

3. Language Options: Chinese and English, 2 languages available

4. Online Speed Adjustment: Adjust the current flow rate without stopping during operation

5. Calibration Function: Supports syringe calibration and stores calibration parameters

6. Syringe Selection: Built-in main models from major domestic and foreign manufacturers, customizable

7. Parameter Setting: Liquid volume, flow rate, perfusion time, aspiration time, interval time, perfusion times can be set and stored

8. Power-On Operation: Stores current dynamic operation parameters when power off, resumes operation after power on again

9. Prompt Function: Real-time display of available Max/Min flow rate; dynamic display of operation parameters

10. Alarm Function: Audible alarm when running to the set target liquid volume

11. Thrust Setting: Appropriate thrust can be set according to each syringe specification

12. External Control Function: External level or pulse signal to realize start/stop control

13. Communication Control: RS485/USB optional, touch setting of address and baud rate

14. Status Output: Start/stop, direction status output

Technical Parameters

1. Number of Channels: Single Channel

2. Working Modes: Perfusion, Aspiration, Perfusion/Aspiration, Aspiration/Perfusion, Continuous, Multiple Perfusion

3. Maximum Stroke: 150mm

4. Accuracy: <1%

5. Repeatability: Error ≤±0.05%

6. Syringe Specification: 0.5μL～100mL

7. Linear Thrust: ≥160N

8. Linear Velocity Range: 0.015μm/min ～30.77mm/min

9. Step Resolution: 0.012μm/μstep

10. Applicable Power Supply: AC 100V～240V  50/60Hz  30W

11. Working Environment: Temperature: 0～40℃  Humidity: 20%-80% RH without condensation

12. Storage Environment: Temperature: -10～60℃  Humidity: 20%-80% RH without condensation

13. Protection Grade: IP31

14. Product Dimensions (mm): 256*190*146 (mm)
