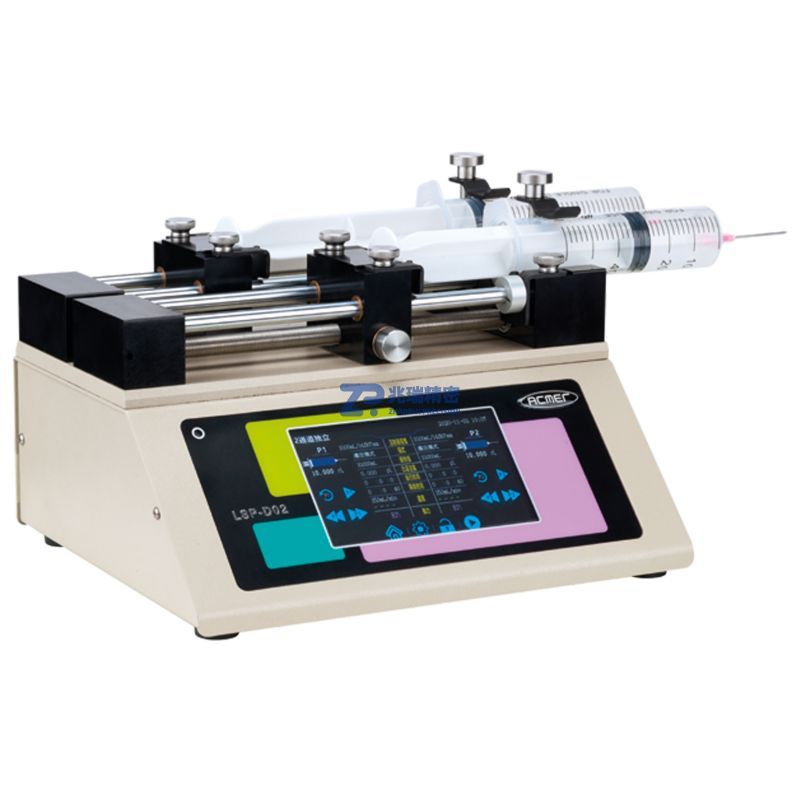

Z5264 Dual-channel Independent Control Microinjection Pump

In the operation of brain stereotaxic instruments, microinjection on animals is often required. The automatic microinjection pump is easy to use: the syringe barrel is directly installed on the holder, and the microcomputer controls the action of the drive unit to precisely move the syringe piston, enabling direct injection or recovery of liquids in experimental animals, thus avoiding errors caused by catheter-based methods.


The Z5264 dual-channel independently controlled microinjection pump features a high-definition touch screen operation and Ditronstep micro-step control system. It is a device used for precise control and delivery of micro-volume liquid drugs or solutions. With a one-to-two structure and independent dual-channel control, it offers high precision, low pulsation, compatibility with various complex application combinations, a full touch screen, and suitability for μL-spec standard syringes. The vertical installation structure can be easily matched with biological instruments such as micromanipulators and brain stereotaxic instruments, and is widely used in various biological experiment fields.

Functional Features

1. Operating Modes: Independent, Reciprocating, Synchronous, Synchronous Confluence

2. Working Modes: Infusion, Aspiration, Infusion/Aspiration, Aspiration/Infusion, Continuous, Multiple Infusions

3. Touch Display: 5-inch high-definition touch screen, simple, clear, easy to understand and operate

4. Language Options: 2 languages available - Chinese and English

5. Online Speed Adjustment: Adjust the current flow rate without stopping during operation

6. Calibration Function: Each channel's syringe can be independently calibrated, and calibration parameters are stored separately

7. Syringe Selection: Built-in main domestic and foreign manufacturers' models for selection, and supports customization

8. Parameter Setting: Each channel can independently set liquid volume, flow rate, infusion time, aspiration time, interval time, with independent storage

9. Power-On Operation: Stores current dynamic operating parameters when power is off, and resumes operation after power is restored

10. Prompt Function: Real-time display of available Min/Max flow rates for each channel; dynamic display of operating parameters for each channel

11. Alarm Function: Audible alarm prompts when each channel reaches its set target liquid volume

12. Thrust Setting: Set appropriate thrust for each channel according to its syringe specification

13. External Control Function: External level or pulse signal to realize independent start/stop control of each channel

14. Communication Control: RS485/USB optional, touch setting of address and baud rate

15. Status Output: Independent output of start/stop and direction status for each channel

Technical Parameters

1. Number of Channels: Dual Channels

2. Operating Modes: Independent, Reciprocating, Synchronous, Synchronous Confluence

3. Working Modes: Infusion, Aspiration, Infusion/Aspiration, Aspiration/Infusion, Continuous, Multiple Infusions

4. Maximum Stroke: 150mm

5. Accuracy: <1%

6. Repeatability: Error ≤±0.05%

7. Syringe Specification: 0.5μL～60mL

8. Linear Thrust: ≥160N

9. Linear Speed Range: 0.08μm/min ～160mm/min

10. Step Resolution: 0.0625μm/μstep

11. Applicable Power Supply: AC 100V～240V  50/60Hz  30W

12. Working Environment: Temperature: 0～40℃  Humidity: 20%-80% RH without condensation

13. Storage Environment: Temperature: -10～60℃  Humidity: 20%-80% RH without condensation

14. Protection Level: IP31

15. Product Dimensions (mm): 256*218*152 (mm)

Applicable Syringes

Ordering Information

Selection Guide
