Z5262 Four-channel Independently Controlled Microinjection Pump

In the operation of brain stereotaxic instruments, microinjection on animals is often required. The automatic microinjection pump is easy to use. The syringe barrel is directly installed on the holder, and the precise movement of the syringe piston is controlled by the microcomputer-controlled drive unit to directly inject or recover liquid into experimental animals, avoiding errors caused by the catheter method.

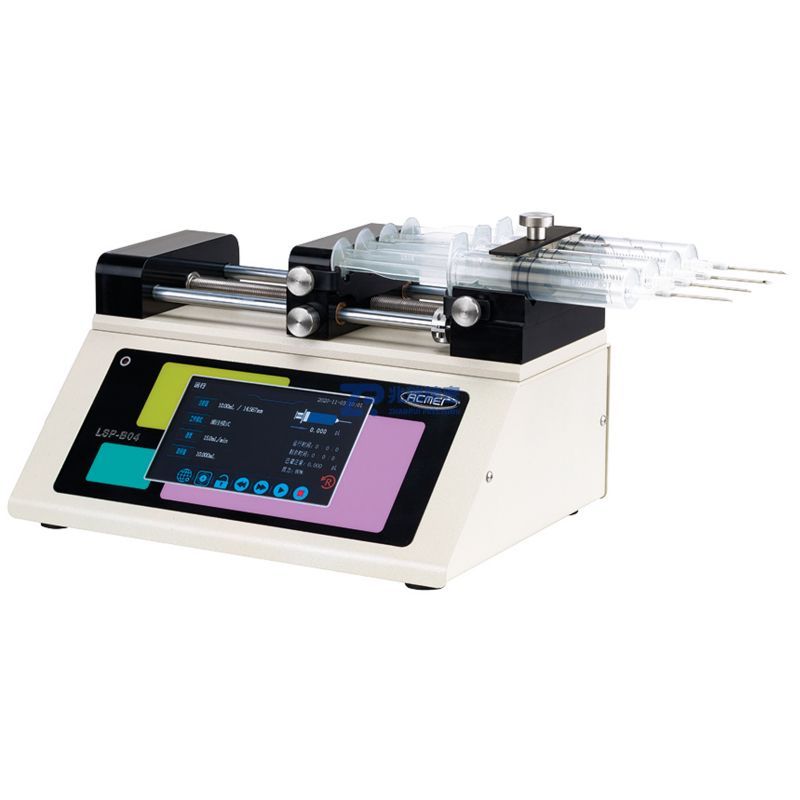

The Z5262 four-channel independently controlled microinjection pump, with high-definition touch screen operation and Ditronstep micro-step control system, is a device used to accurately control and deliver micro-volume liquid drugs or solutions. It adopts a one-to-four structure with four channels controlled independently; high precision; low pulsation; suitable for various complex application combinations; full touch screen; suitable for standard injectors of μL specifications. The vertical installation structure can be conveniently matched with biological instruments such as micromanipulators and brain stereotaxic instruments, and is widely used in various biological experiment fields.

Functional Features

1. Operation Modes: Independent, Reciprocating, Synchronous, Synchronous Confluence

2. Working Modes: Perfusion, Extraction, Perfusion/Extraction, Extraction/Perfusion, Continuous, Multiple Perfusion

3. Touch Display: 5-inch high-definition touch screen, simple, clear, easy to understand and operate

4. Language Types: Chinese and English, 2 languages optional

5. Online Speed Regulation: Adjust the current flow rate without stopping during operation

6. Calibration Function: Each channel syringe can be calibrated independently, and calibration parameters are stored independently

7. Syringe Selection: Built-in main injectors from major domestic and foreign manufacturers with selectable main models, and supports customization

8. Parameter Setting: Each channel can independently set liquid volume, flow rate, perfusion time, extraction time, interval time and store them independently

9. Power-on Operation: Store current dynamic operation parameters when power off, and continue to run after power on again

10. Prompt Function: Each channel displays its available Min/Max flow rate in real time; dynamically displays the operation parameters of each channel

11. Reminder Function: When each channel runs to its set target liquid volume, an audible alarm will prompt respectively

12. Thrust Setting: Set appropriate thrust for each channel according to its syringe specification

13. External Control Function: External level or pulse signal to realize independent start and stop control of each channel

14. Communication Control: RS485/USB optional, touch setting of address and baud rate

15. Status Output: Independent output of start/stop and direction status for each channel

Technical Parameters

1. Number of Channels: Four channels

2. Operation Modes: Independent, Reciprocating, Synchronous, Synchronous Confluence

3. Working Modes: Perfusion, Extraction, Perfusion/Extraction, Extraction/Perfusion, Continuous, Multiple Perfusion

4. Maximum Stroke: 150mm

5. Accuracy: <1%

6. Repeatability: Error ≤±0.05%

7. Injector Specification: 0.5μL～60mL

8. Linear Thrust: ≥160N

9. Linear Speed Range: 0.08μm/min ～160mm/min

10. Step Resolution: 0.0625μm/μstep

11. Applicable Power Supply: AC 100V～240V 50/60Hz 30W

12. Working Environment: Temperature: 0～40℃; Humidity: 20%-80% RH without condensation

13. Storage Environment: Temperature: -10～60℃; Humidity: 20%-80% RH without condensation

14. Protection Level: IP31

15. Product Dimensions (mm): 256*218*152 (mm)
