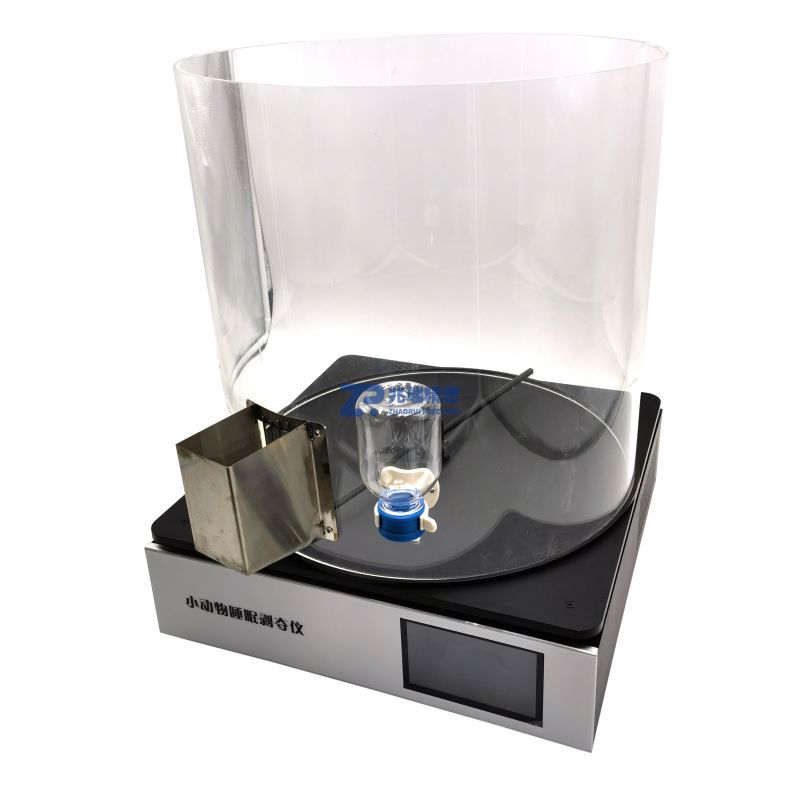

Z8013 Large and Small Mouse Sleep Deprivation Device

The rat and mouse sleep deprivation instrument can interfere with the sleep activity behavior of animals. There is a light source above the machine, which can be turned on and off in conjunction with the machine logic; the system can deprive mice and rats of sleep without human intervention, while minimizing physical damage. The rotation speed, direction and duration of the joystick can be freely selected.

Technical Parameters

1. Display mode: 5-inch capacitive screen
2. Exercise time setting range: 00 min 00 sec to 99 min 59 sec
3. Rest time setting range: 00 min 00 sec to 99 min 59 sec
4. Total experiment time range: 0-999 hours
5. Operation mode: uninterrupted interference, intermittent interference
6. Stage number adjustment range: 1-24 stages
7. Rotation speed adjustment range: 1-20 rpm
8. Interference mode: 360-degree rotation
9. Interference rod height adjustment range: 3-level adjustment
10. Main chassis size: 410*410*100mm
11. Activity cylinder size: 400*390mm
12. Activity cylinder material: transparent acrylic
13. Interference rod diameter: 10mm, length 380mm
14. Lighting power supply: 5V
15. Lighting mode: automatic and manual
16. Equipment power supply: 110V~220V 50HZ
17. Parameter setting items: system time, total experiment time, deprivation time, rest time, operation interval, forward and reverse rotation, etc.
18. Applicable number of animals: about 1-20 mice, about 1-6 rats
