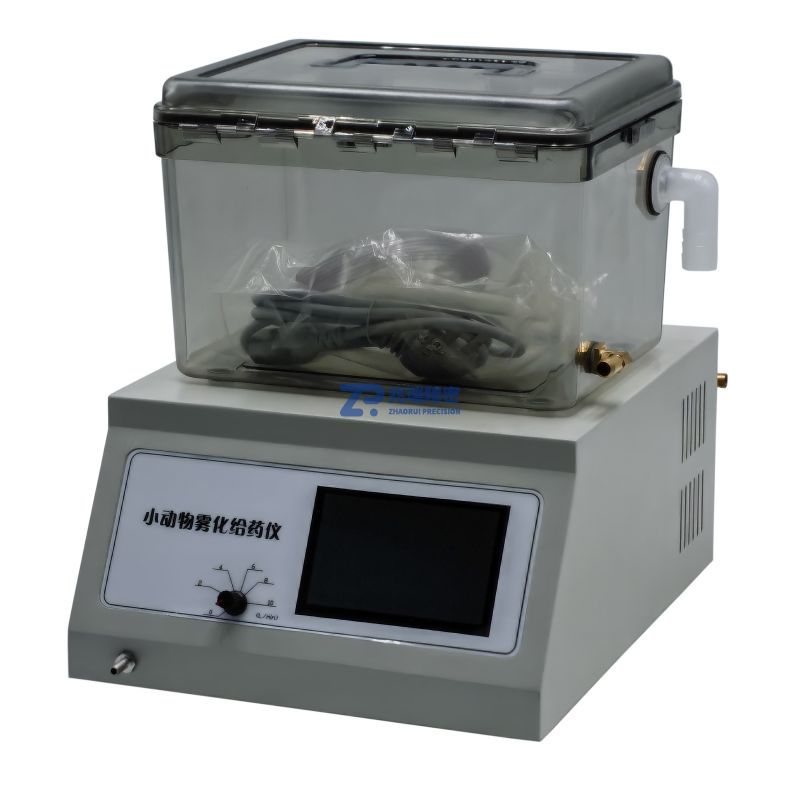

Z8016 Large and Small Rats Nebulizer Drug Delivery System

The rodent nebulization administration instrument adopts compressed air generated by a compression type. When the compressed air is ejected from the nozzle, negative pressure is generated between the nozzle and the suction pipe to suck up the liquid medicine upwards. The sucked liquid medicine impacts the upper baffle and is sprayed outwards as extremely fine mist. It is used for respiratory tract, oral cavity, lung and other absorption medication in animals.

Technical Parameters

1. Gas atomization method: Compression type
2. Gas flow rate: 0-10L/min
3. Liquid capacity: 0~30ml
5. Particle size: 75% below 0.2~5μm
6. Upper limit atmospheric pressure: 180－300Kpa
7. Noise: Below 60db
8. Timing: 0~9999 minutes
9. Speed adjustment method: Stepless speed change
10. Induction box size: 300x240x200mm
11. Closed box material: PC material
12. Filter material: Activated carbon
13. Weight: 2.5KG
14. Power supply: 220V 50HZ

Usage Method

1. Insert the hose into the bottom air inlet of the nebulization cup, then insert the side port of the nebulization cup into the air inlet of the closed box, connect the other end of the hose to the air outlet of the nebulizer, pour the liquid medicine into the nebulization cup (there are scales on the side of the nebulization cup).
2. After the instrument is connected, turn on the power supply, first set the administration time (0~30 minutes), the concentration can be controlled by high, medium and low gears. Then click start, and the administration ends when the time is up.
