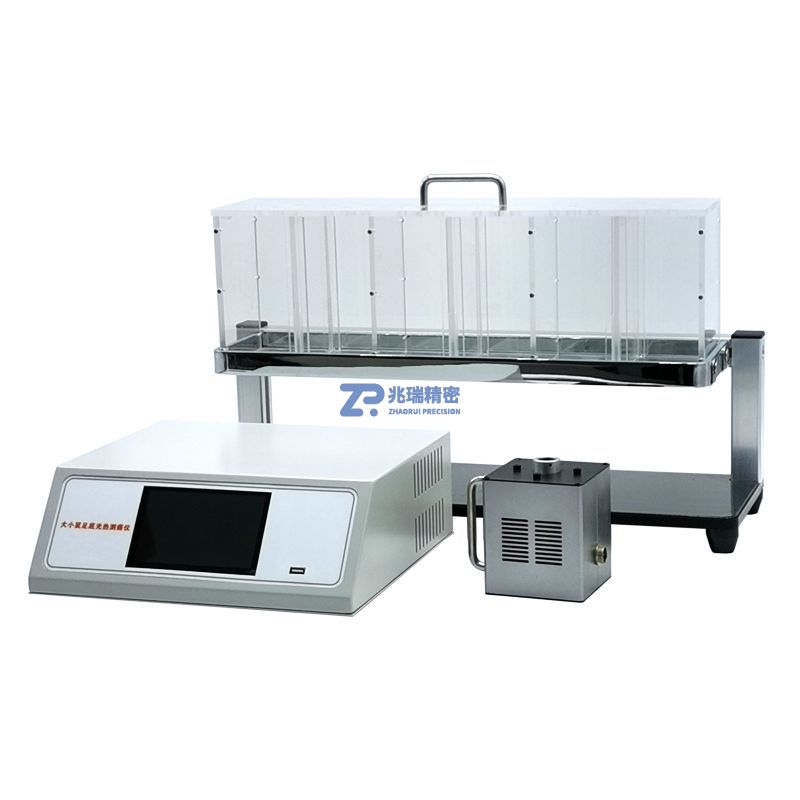

Z8009 Large and Small Mouse Foot Photothermal Stimulation Device

The rat and mouse plantar photothermal nociception tester is an instrument applied in pain research such as pain physiology and pharmacology. It can automatically determine the pain threshold time of rats/mice under free state stimulated by plantar photothermal stimulation, with simple operation and automatic measurement results. It is an ideal experimental instrument for studying analgesic drugs in pharmacological experiments.

Technical Parameters

1. The test chamber can conduct experiments on 3 rats / 6 mice at the same time
2. Adopt microcomputer control mode to measure the plantar photothermal stimulation pain threshold time of animals in free state;
3. Total illumination power: 80w
4. Protective time can be set to avoid rat tail burns
5. Timing unit step: 0.01 seconds
6. Trigger start: two triggering methods (foot switch and screen button)
7. Pain threshold recording method: automatic timing, manual timing with foot switch
8. Data export function: Yes, U disk export
9. Data storage capacity: 20 animals/group, 100 groups
10. Instrument display screen: 5-inch touch screen with 800*480 resolution
11. Power supply: 110~220V 50Hz
12. Total power: 80W
13. Appearance size: 360*280*120mm (length * width * height)
14. Weight: 10 kg
