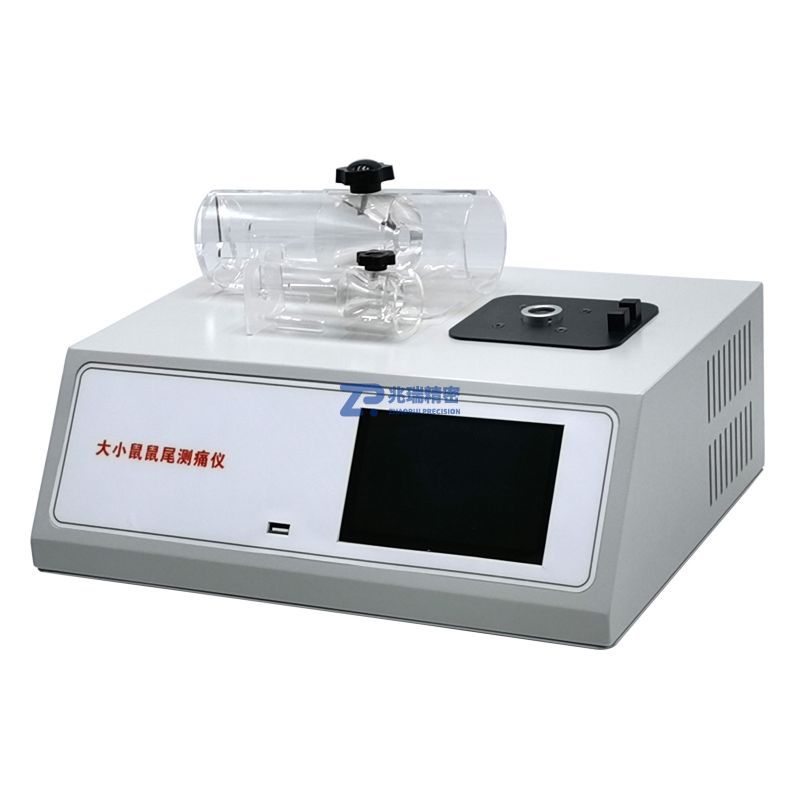

Z8012 Rat Tail Pain Detector

The light-induced tail-flick method (also known as the photothermal tail-flick method or radiant heat tail-flick method) for the rodent tail pain tester works on the basic principle of irradiating a beam of light onto the rodent's tail to generate a heat collection effect. This causes local heating of the tail, producing a pain sensation. When the pain threshold of the animal is exceeded, the animal will flick its tail to escape. This method of judging the level and changes of the animal's pain threshold is called the light-induced tail-flick method.

Technical Parameters

1. The instrument adopts 780-2500 infrared light spots
2. Total illumination power: 50w
3. Protective time can be set to avoid tail burns
4. Light intensity adjustment range: 1%~100%, step size 1%
5. Timing unit step size: 0.01 seconds
6. Trigger start: two triggering methods (foot switch and screen buttons)
7. Pain threshold recording method: automatic timing and manual timing via foot switch
8. Data can be exported to U disk
9. Data storage capacity: 20 animals/group, 100 groups
10. Instrument display: 5-inch touch screen with 800*480 resolution
11. Input voltage: AC110-220V
12. Instrument dimension: 360×280×120mm
13. The instrument is equipped with one fixation cylinder for rats and one for mice respectively
14. Weight: 3.5kg
