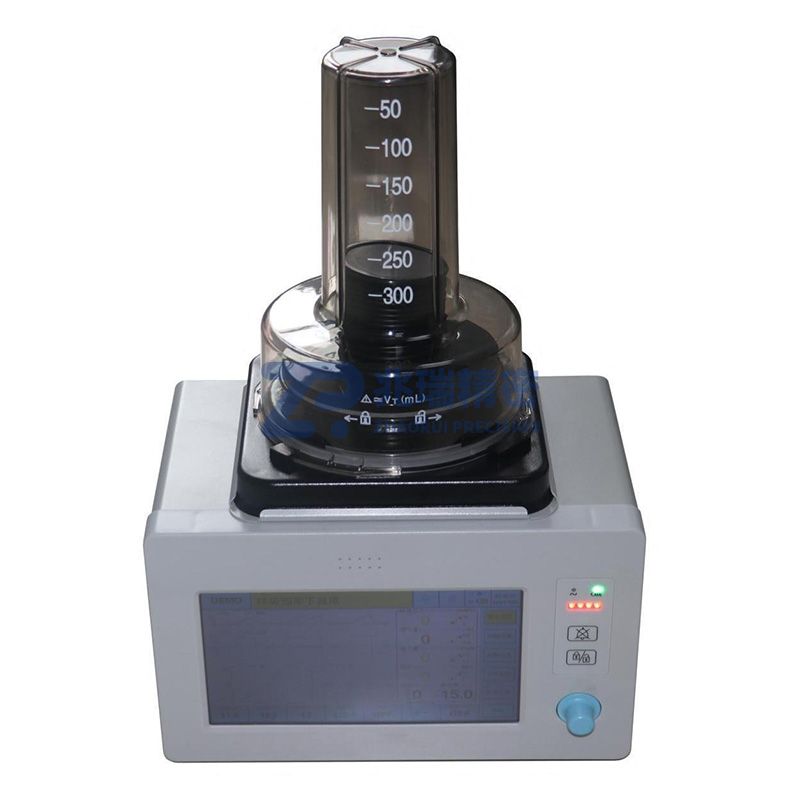

Z5290 animal ventilator

The animal ventilator is a commonly used experimental device, widely applied in artificial respiration, respiratory management, animal first aid, respiratory therapy and other aspects of scientific research experiments in basic medicine, clinical medicine, veterinary medicine and other fields. It features accurate control, convenience and practicality, no need for high-pressure air sources, precise tidal volume output and stable performance.

Technical Parameters

1. Working mode: Machine-controlled, Manual

2. Ventilation mode: VCV mode, V-SIMV mode, PCV mode, P-SIMV mode, Manual mode

3. Bellows: Special bellows design for small and large animals (0-300ML), 100-1500ML

4. Driving mode: Air source driven electric control / Turbine driven electric control

5. International standard interface, compatible with any international standard pet anesthesia machine

6. Suitable for animal hospitals, laboratories, scientific research institutions, clinical teaching and other institutions

7. Multiple breathing modes such as pressure, volume, spontaneous breathing, etc.

8. With end-expiratory pressure (PEEP) monitoring

9. Differential pressure flow rate monitoring for more accurate flow rate measurement

10. 9-inch high-definition touch screen display with one-key trigger

11. Only need to set the body weight, other parameters are calculated automatically

12. Equipped with flow rate, volume, pressure waveforms and double-loop flow rate and pressure loop design

13. With apnea alarm function

14. Independently set alarm parameters automatically according to different body weights

15. Three-level color-coded sound and light alarm system

16. Built-in lithium battery with 2-4 hours of continuous use

17. With special USB interface for software upgrade

18. With cooling fan system to reduce machine temperature, enabling long-time use of the ventilator
