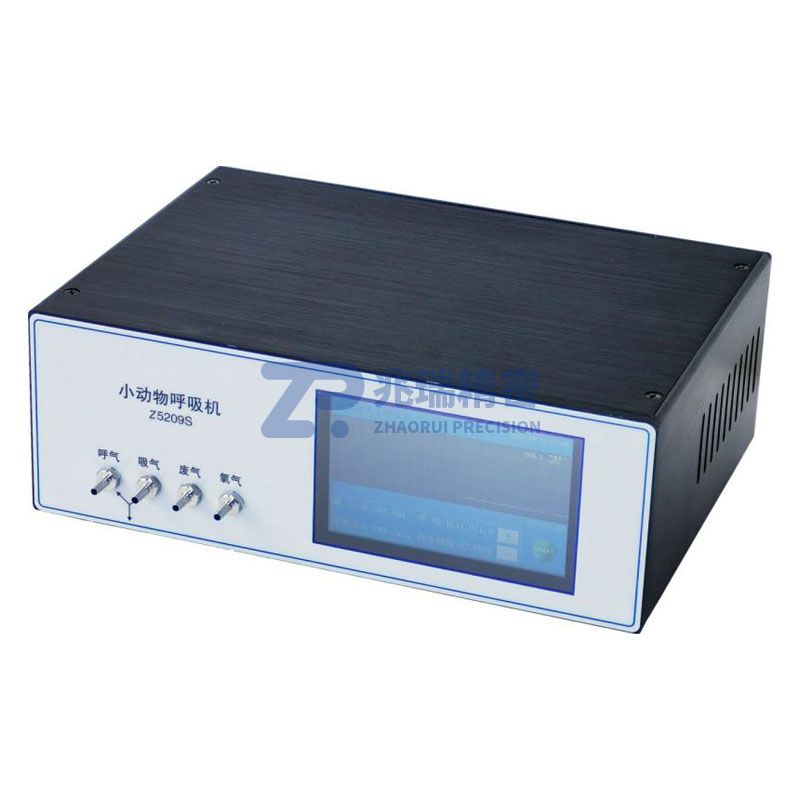

Z5209S Animal ventilators

Animal ventilators are commonly used experimental equipment, widely applied in artificial respiration, respiratory management, animal first aid, respiratory therapy and other aspects in scientific research experiments such as basic medicine, clinical medicine and veterinary medicine. They feature accurate control, convenience and practicality, no need for high-pressure air sources, precise tidal volume output and stable performance.

Technical Parameters

1. Adopt 5-inch LCD touch screen for display and operation

2. With airway pressure waveform display function

3. With oxygen inlet for easy connection of anesthetic gas or oxygen

4. With waste gas outlet for easy connection to anesthetic gas filter

5. Breathing frequency adjustment range: 1–200 times/min

6. Output air volume calibration function: 1~80cc

7. Display LCD brightness adjustment: Adjustable

8. Tidal volume adjustment range: 0.2-5.0ml

9. I:E ratio adjustment: 1:5~5:1

10. Suitable for mice, rats, guinea pigs and other animals
