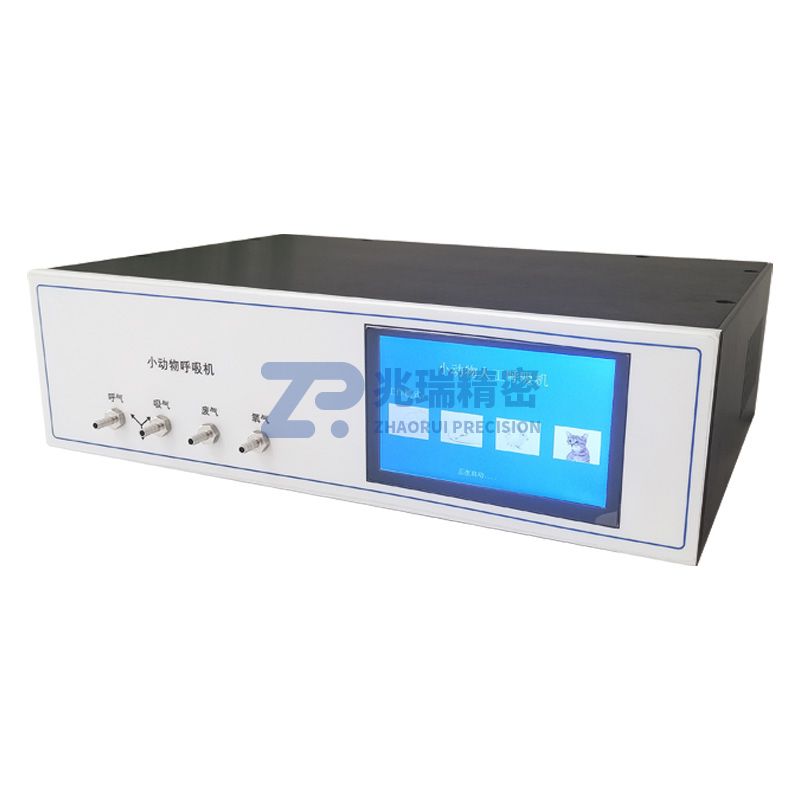

Z5209-1 Animal ventilator

Animal ventilator is a commonly used experimental device, widely applied in artificial respiration, respiratory management, animal first aid, respiratory therapy and other aspects of scientific research experiments in basic medicine, clinical medicine, veterinary medicine and other fields. It features accurate control, convenience and practicality, no need for high-pressure air source, precise tidal volume output and stable performance.

Technical Parameters

1. Adopt 5-inch LCD touch screen for display and operation

2. With airway pressure waveform display function

3. With oxygen inlet for easy connection of anesthetic gas or oxygen

4. With waste gas outlet for easy connection to anesthetic gas filter

5. Breathing frequency adjustment range: 1–200 times/minute

6. Output air volume calibration function: 1~80cc

7. Display LCD brightness adjustment: Adjustable

8. Tidal volume adjustment range: 0.2-5.0ml

9. Inspiratory-expiratory ratio adjustment: 1:5~5:1

10. Suitable for mice, rats, guinea pigs, rabbits, cats and other animals
