The Large Animal Anesthesia Machine is an essential basic anesthetic equipment for animal experiments. It is suitable for almost all surgeries of various animals including dogs, cats, pigs, monkeys, rodents, reptiles and birds. Combined with our company's relevant air supply, induction chamber, anesthesia mask and gas recovery device, it provides a complete set of gas anesthesia solutions for large animals, featuring simple operation, safety and reliability. In developed countries, gas inhalation anesthesia is widely used in animal experiments.

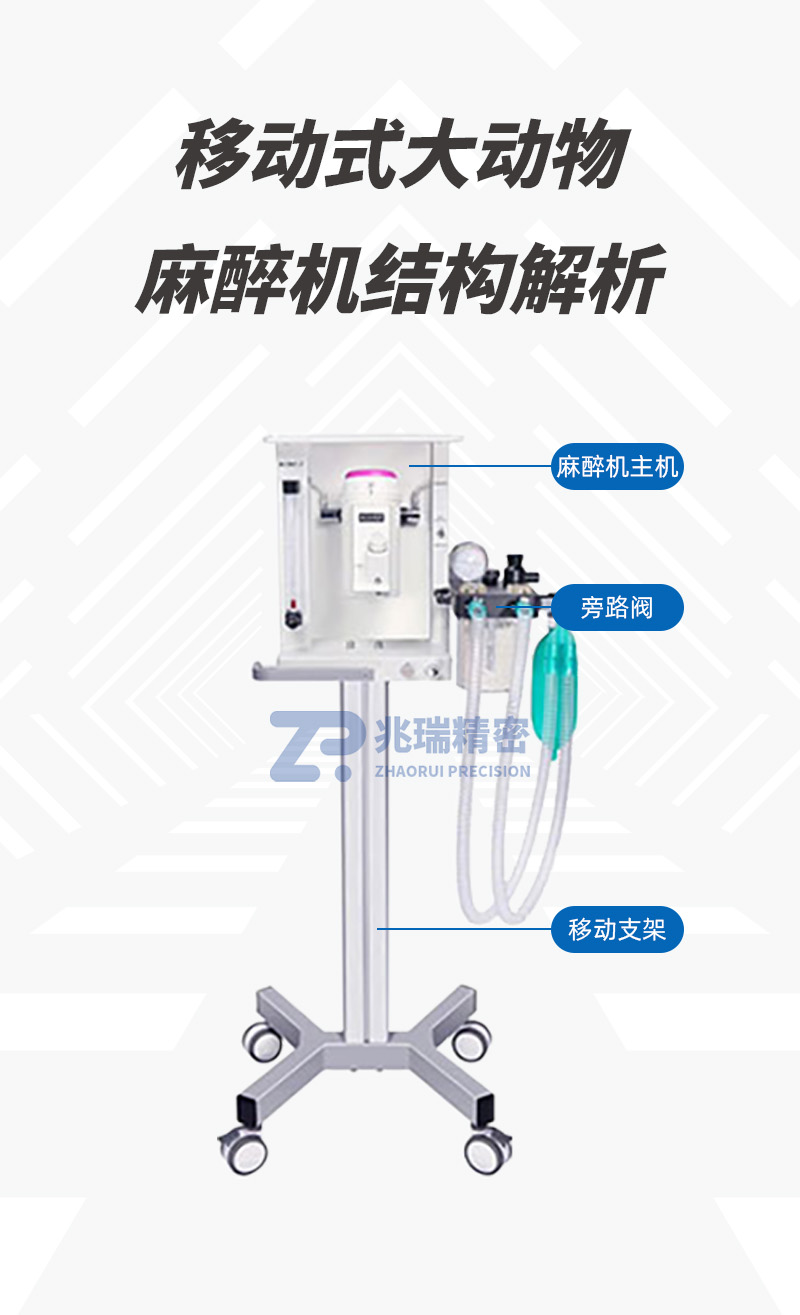

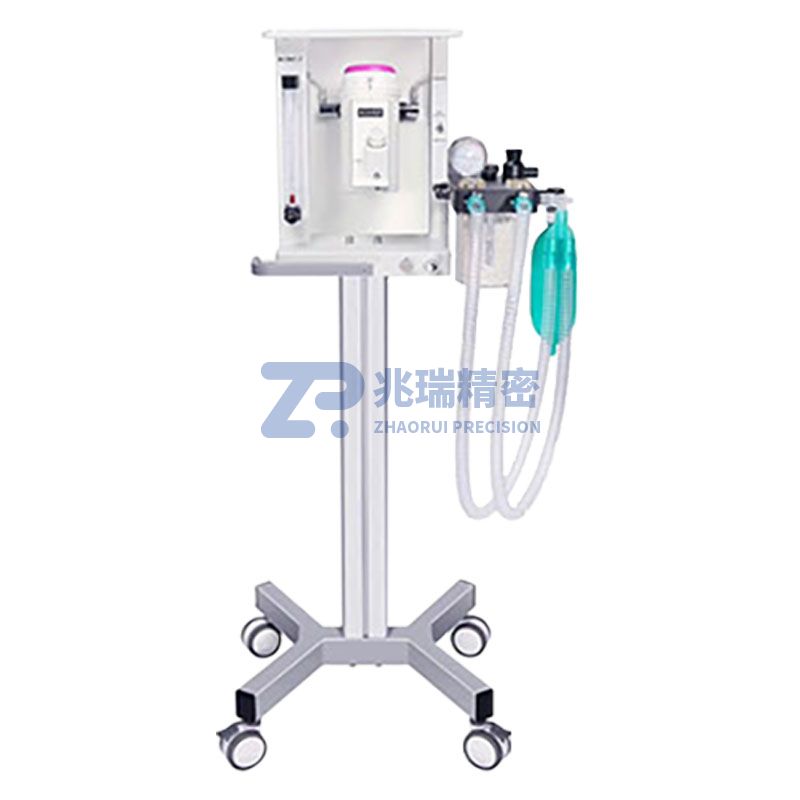

The Z5282 Mobile Large Animal Anesthesia Machine is equipped with a mobile bracket on the basis of the desktop type, enabling the device to be used in both desktop and mobile modes to meet customer needs. The anesthesia machine is mainly composed of an anesthesia vaporizer and a controller. It uses the air flow of the air pump as power to mix air with isoflurane in the anesthesia vaporizer, which then enters the animal's body through a mask or ventilator. The anesthesia machine has the characteristics of high safety, precise control of anesthetic dosage, reversible anesthetic effect and monitorable status, which can greatly improve work efficiency.
Technical Parameters
| Anesthesia Vaporizer | Output Accuracy: ＜1±0.1 |
| Scale Concentration: ＞1±15% | |
| Sealing Performance: No leakage in the vaporizer; overall machine leakage is less than 155mL/min | |
| Applicable Anesthetics: Isoflurane; Sevoflurane and Enflurane are optional | |
| Breathing Circuit Components | Soda Lime Capacity: 800g |
| Pressure Monitoring Range: -2-6KPA | |
| APL Valve Adjustment Range: 0.2-6.0KPA | |
| Inspiratory Impedance: ≤0.6KPA | |
| Expiratory Impedance: ≤0.6KPA | |
| Flow Meter | Flow Range: 0-4L/min |
| Rapid Oxygen Supply Switch | Flow Range: 10L-20L/min |
| Anesthesia Mode | Closed, Semi-closed, Open |
Optional Configuration
|
|
|
|
|
|
|
|
Selection Guide
|
|
|
|
|
