The Large Animal Anesthesia Machine is an essential basic anesthetic equipment for animal experiments. It is suitable for almost all surgeries of various animals including dogs, cats, pigs, monkeys, rodents, reptiles and birds. Combined with our company's related air supply system, induction chamber, anesthesia mask and gas recovery device, it provides a complete set of gas anesthesia solutions for large animals, featuring simple operation, safety and reliability. In developed countries, gas inhalation anesthesia is widely used in animal experiments.

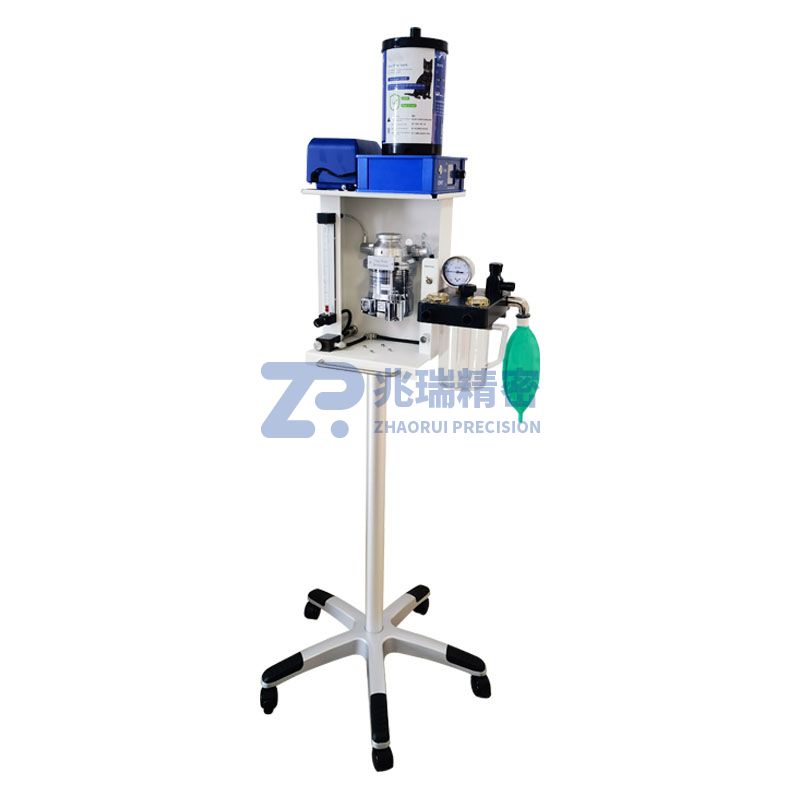

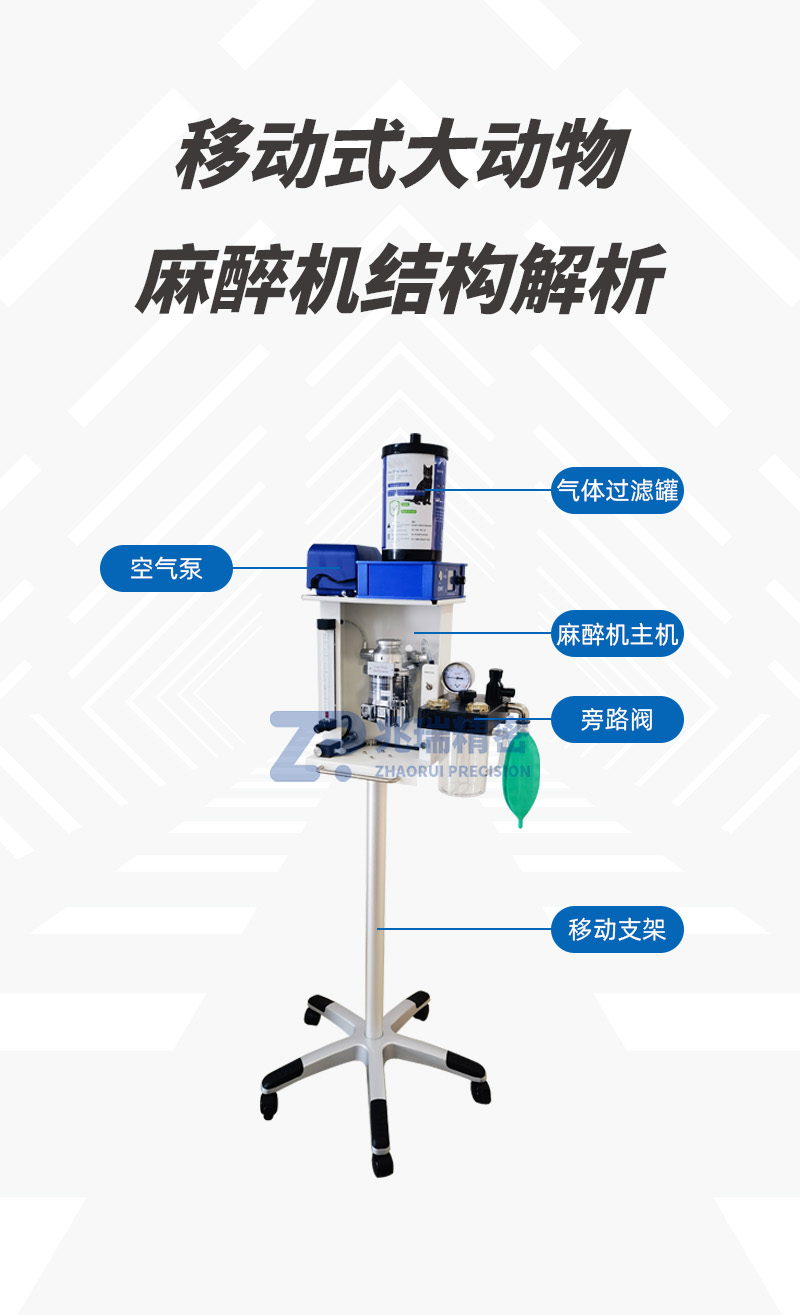

The Z5288 Mobile Large Animal Anesthesia Machine is equipped with a mobile stand on the basis of the desktop type, enabling the device to be used in both desktop and mobile modes to meet customer needs. The anesthesia machine mainly consists of an anesthesia vaporizer and a controller. It uses the air flow from the air pump as the power source, which mixes air with isoflurane in the vaporizer and then delivers the mixture into the animal's body through a mask or ventilator. This anesthesia machine has the characteristics of high safety, precise control of anesthetic dosage, reversible anesthetic effect and monitorable status, which can greatly improve work efficiency.
Technical Parameters
| Anesthesia Vaporizer | Output Accuracy: ＜1±0.1 |
| Scale Concentration: ＞1±15% | |
| Tightness: No leakage in the vaporizer; the overall leakage rate of the machine is less than 155mL/min | |
| Isoflurane is standard; Sevoflurane or Enflurane is optional | |
| Breathing Circuit Components | Soda Lime Capacity: 800g |
| Pressure Monitoring Range: -2~6KPA | |
| APL Valve Adjustment Range: 0.2~6.0KPA | |
| Inspiratory Impedance: ≤0.6KPA | |
| Expiratory Impedance: ≤0.6KPA | |
| Flowmeter | Flow Range: 0~4L/min |
| Rapid Oxygen Supply Switch | Flow Range: 10L~20L/min |
| Anesthesia Mode | Closed, Semi-Closed, Open |
