The Large Animal Anesthesia Machine is an essential basic anesthetic device for animal experiments. It is suitable for almost all surgical procedures on various animals including dogs, cats, pigs, monkeys, rodents, reptiles and birds. Combined with our company's supporting air supply system, induction chamber, anesthesia mask and gas recovery unit, it provides a complete set of gas anesthesia solutions for large animals, featuring simple operation, safety and reliability. In developed countries, gas inhalation anesthesia is widely adopted in animal experiments.

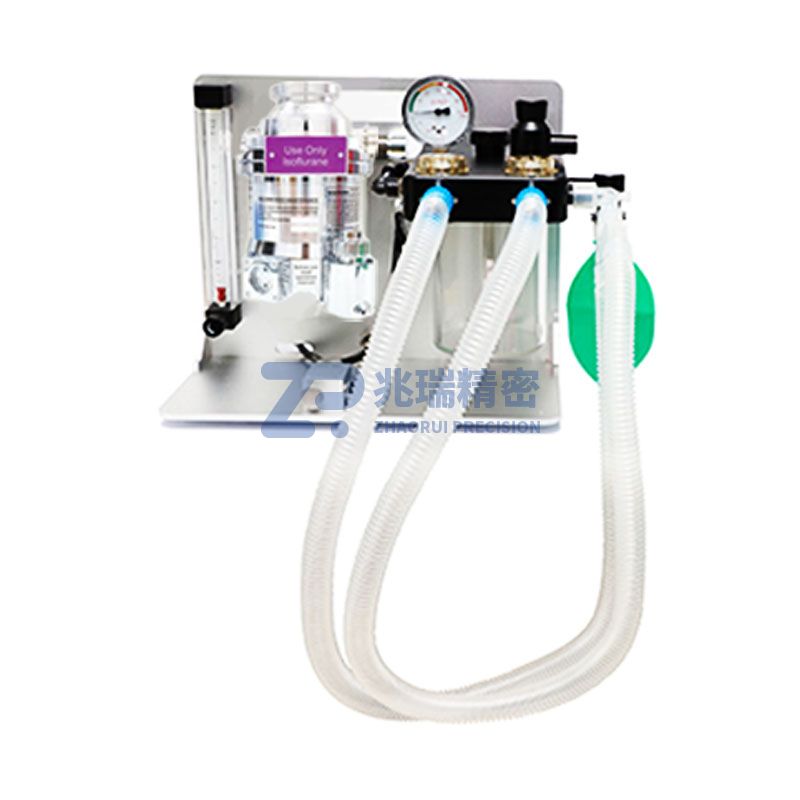

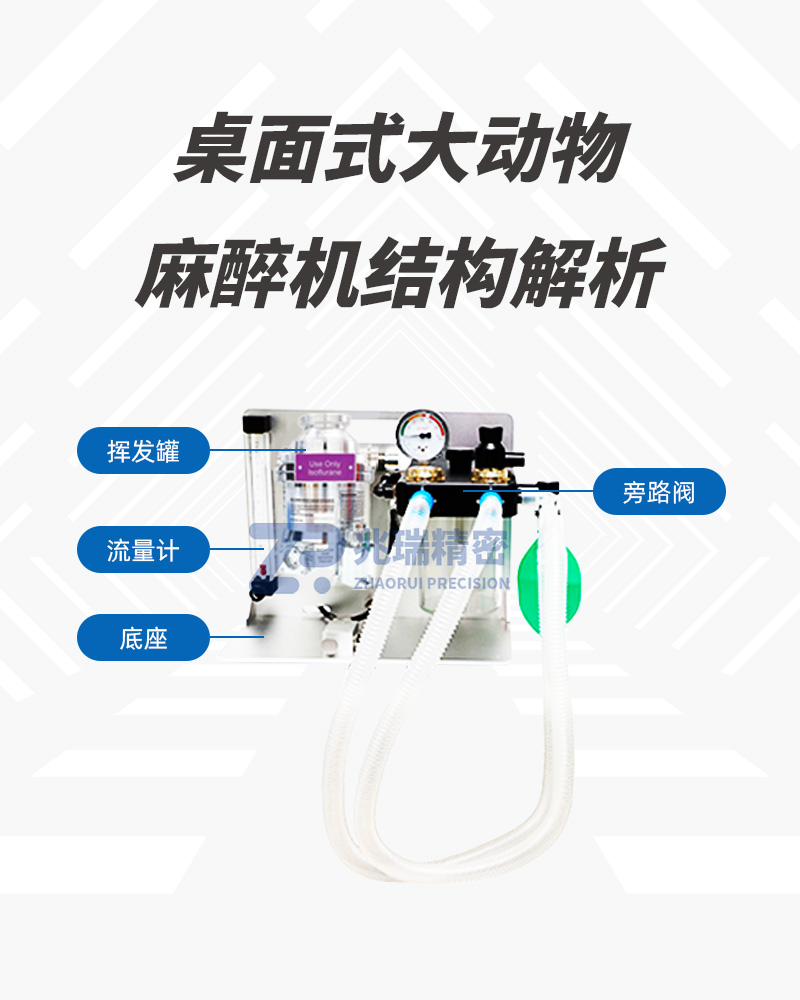

The Z5289 Desktop Large Animal Anesthesia Machine can be equipped with a mobile stand, enabling both desktop and mobile operation modes to meet diverse customer requirements. The anesthesia machine mainly consists of an anesthesia vaporizer and a controller unit. It utilizes the air flow generated by an air pump as the power source, which mixes air with isoflurane in the vaporizer and then delivers the mixture into the animal's body via a mask or ventilator. This anesthesia machine is characterized by high safety, precise control of anesthetic dosage, reversible anesthetic effect and real-time status monitoring, which can significantly improve work efficiency.
Technical Parameters
| Anesthesia Vaporizer | Output Accuracy: ＜1±0.1 |
| Scale Concentration: ＞1±15% | |
| Tightness: No leakage from the vaporizer; overall machine leakage rate is less than 155mL/min | |
| Isoflurane applicable; Sevoflurane and Enflurane optional | |
| Breathing Circuit Components | Soda Lime Capacity: 800g |
| Pressure Monitoring Range: -2-6KPA | |
| APL Valve Adjustment Range: 0.2-6.0KPA | |
| Inspiratory Resistance: ≤0.6KPA | |
| Expiratory Resistance: ≤0.6KPA | |
| Flow Meter | Flow Range: 0-4L/min |
| Rapid Oxygen Supply Switch | Flow Range: 10L-20L/min |
| Anesthesia Mode | Closed, Semi-closed, Open |
