The large animal anesthesia machine is an essential basic anesthetic device for animal experiments. It is suitable for almost all surgeries of various animals including dogs, cats, pigs, monkeys, rodents, reptiles and birds. Combined with our related air supply system, induction chamber, anesthesia mask and gas recovery unit, it provides a complete set of gas anesthesia solutions for large animals, featuring simple operation, safety and reliability. In developed countries, gas inhalation anesthesia is widely applied in animal experiments.

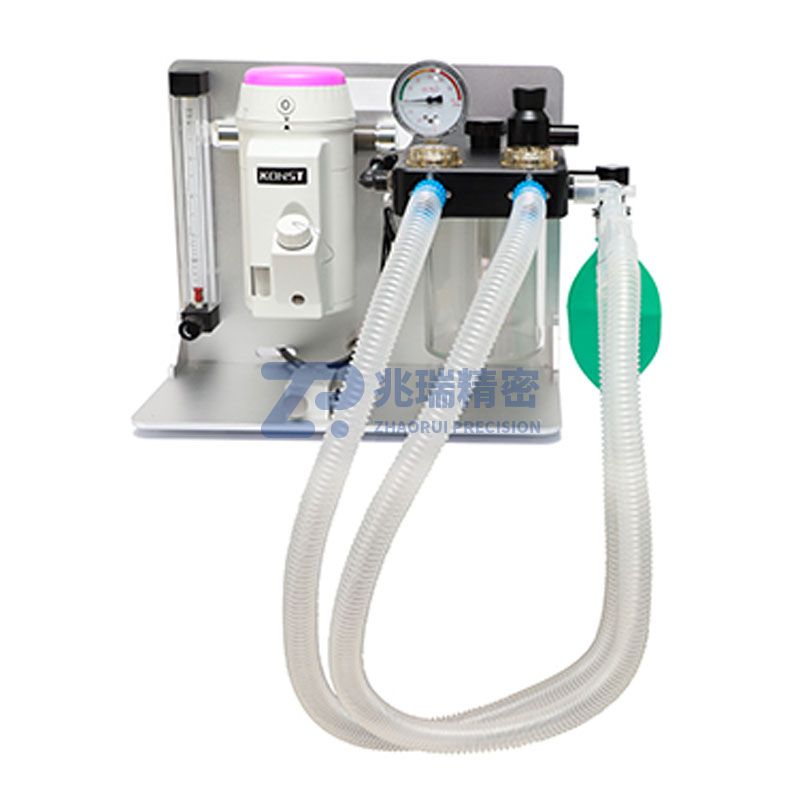

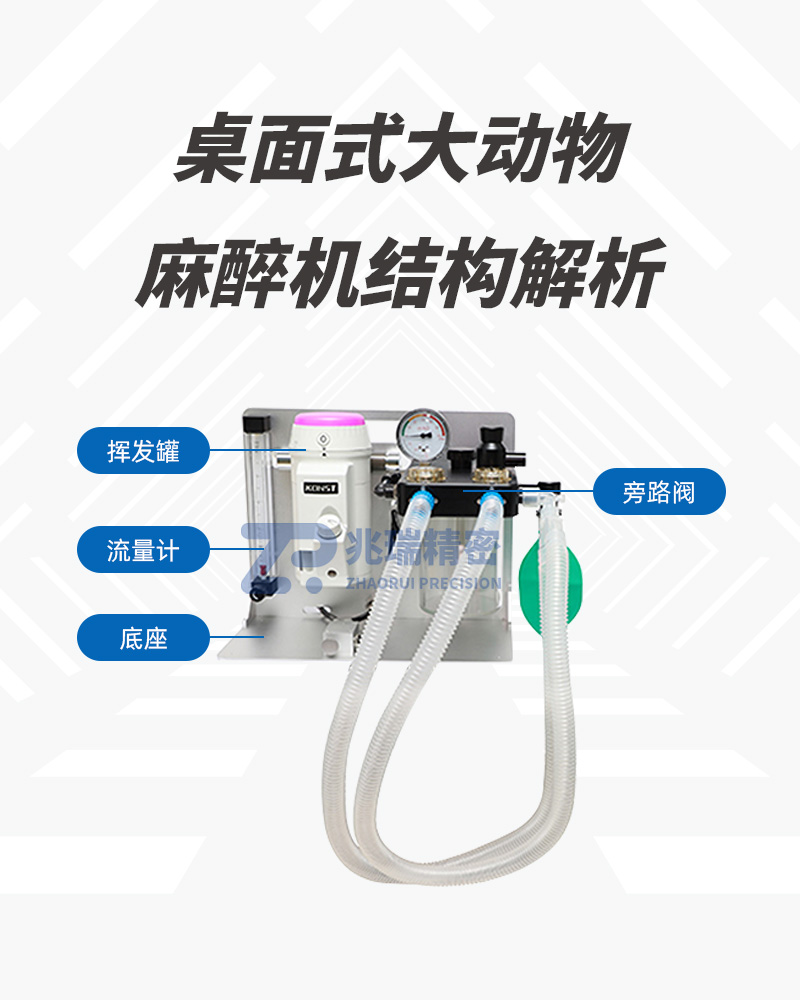

The Z5287 Desktop Large Animal Anesthesia Machine can be equipped with a mobile stand, enabling both desktop and mobile operation modes to meet customer needs. The machine mainly consists of an anesthesia vaporizer and a controller unit. It utilizes the air flow generated by an air pump as the power source, which mixes air with isoflurane in the vaporizer and then delivers the mixture into the animal's body via a mask or ventilator. With high safety, precise control of anesthetic dosage, reversible anesthetic effect and real-time status monitoring, this anesthesia machine can significantly improve work efficiency.
Technical Parameters
| Anesthesia Vaporizer | Output Accuracy: ＜1±0.1 |
| Scale Concentration: ＞1±15% | |
| Tightness: No leakage from the vaporizer; overall leakage rate less than 155mL/min | |
| Compatible with Isoflurane; Sevoflurane and Enflurane are optional | |
| Breathing Circuit Components | Soda Lime Capacity: 800g |
| Pressure Monitoring Range: -2~6KPA | |
| APL Valve Adjustment Range: 0.2~6.0KPA | |
| Inspiratory Resistance: ≤0.6KPA | |
| Expiratory Resistance: ≤0.6KPA | |
| Flow Meter | Flow Range: 0~4L/min |
| Rapid Oxygen Supply Switch | Flow Range: 10L~20L/min |
| Anesthesia Mode | Closed Mode, Semi-closed Mode, Open Mode |
