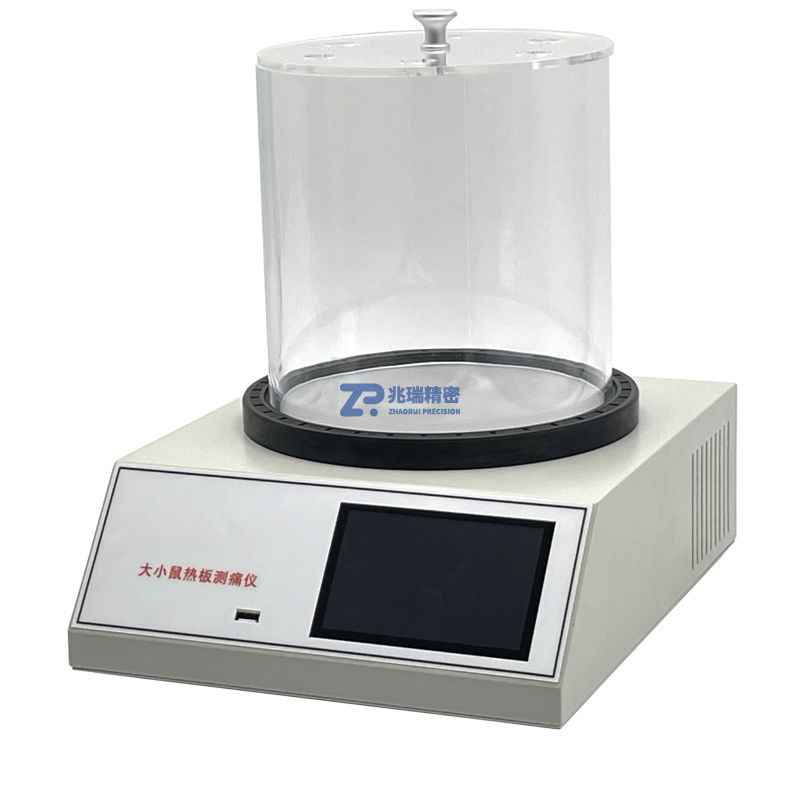

Z8007 Rat And Mice Hot Plate Pain Meter

The hot plate test method is a commonly used approach in analgesic screening and detection, and also a method that can distinguish the analgesic mechanisms of central nerves and peripheral nerves, with a wide range of applications. In the past, due to imprecise temperature control, inaccurate timing, and operational errors by personnel during use, the results of experiments were often low in specificity. To address these issues, we have developed a hot plate analgesia meter for rats and mice, which solves the problems existing in the hot plate method and has received consistent praise from experts and professors during trial and practical use.

Technical Parameters

1. Heating time from room temperature to 55℃: ≤5 minutes
2. Temperature display: 0.1℃
3. Temperature control: 0.1℃
4. Time display: 0.01s
5. Time display range: 0.01s ~ 99min 59.99s
6. Temperature sensor: Digital temperature sensor
7. Temperature sensor resolution: 0.0625℃
8. Temperature setting range: Room temperature ~ 80℃
9. Hot plate diameter: 170mm
10. Display mode: 5-inch touch screen, all indicators displayed simultaneously
11. Display content: Actual temperature, set temperature, pain threshold time, output, etc.
12. Data output: With USB interface, data can be stored externally
13. Internal data storage capacity: 500 groups of data
14. Recording method: Foot switch, touch switch
15. Operating temperature: 0℃ ~ 45℃
16. Relative air humidity: 15 ~ 80%RH
17. Power supply voltage: AC110~220V±20V
18. Power supply frequency: 50Hz±2Hz
19. Input power: ≤300W
20. Host dimension: 260*260*155mm
21. Weight: 3Kg
