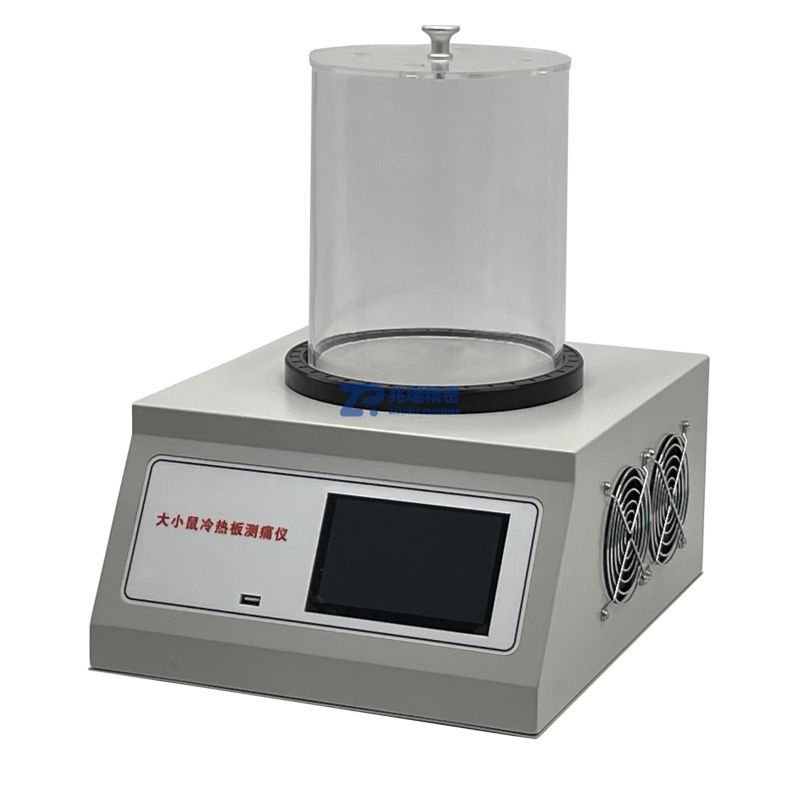

Z8008 Large And Small Rat Cold And Hot Plate Pain Tester

The hot and cold plate analgesia test method is a commonly used method for analgesic screening and detection, and also a method that can determine and distinguish the analgesic mechanisms of central and peripheral nerves, with a wide range of applications. In the past, due to imprecise temperature control, inaccurate timing and operational errors by personnel during use, the results of experiments were often low in specificity. To address the above issues, we have developed the Hot and Cold Plate Analgesia Meter for Rats and Mice, which solves the problems existing in the hot and cold plate method and has received unanimous praise from experts and professors during trial and practical use.

The Hot and Cold Plate Analgesia Meter for Rats and Mice is easy to use with clear indicators, causes little tissue damage, and the animals can be reused. The pain response latency is relatively long, which is convenient for observing and measuring small differences between tests, comparing the strength, speed and duration of analgesic effects, and can export detection data at the same time.

Technical Parameters

1. Time from room temperature to 55℃: ≤5 minutes
2. Temperature display error: 0.1℃
3. Temperature control error: 0.1℃
4. Time display error: 0.01s
5. Time display range: 0.01s ~ 99min 59.99s
6. Temperature sensor: Digital temperature sensor
7. Temperature sensor resolution: 0.0625℃
8. Temperature setting range: Room temperature ~ 80℃
9. Hot plate diameter: 170mm
10. Display mode: 5-inch touch screen, all indicators displayed simultaneously
11. Display content: Actual temperature, set temperature, pain threshold time, etc.
12. Data output: With USB interface, data can be stored externally
13. Internal data storage capacity: 500 groups of data
14. Recording mode: Foot switch, touch switch
15. Working temperature: 0℃ ~ 45℃
16. Relative air humidity: 15 ~ 80%RH
17. Power supply voltage: AC110~220V±20V
18. Power supply frequency: 50Hz±2Hz
19. Input power: ≤300W
20. Host dimension: 260*260*155mm
21. Weight: 3Kg
