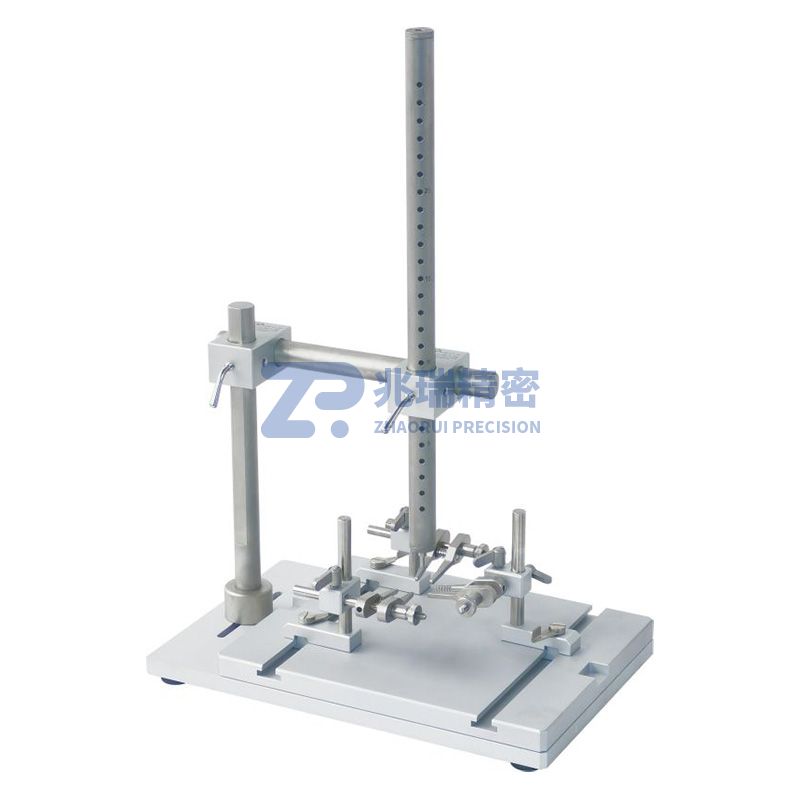

Z5113 Spinal Cord Injury Instrument

The spinal cord impactor works on the principle of free fall, consisting of a striker pin, weights, metal tube, spinal cord clamp and other components. It is mainly used to create animal models of spinal cord injury. By selecting weights of different masses and using limit devices, the spinal cord impactor can precisely control the impact position and force, resulting in varying degrees of spinal cord injury in animals. It can produce highly reproducible spinal cord injury models without the need for computer software control, featuring simple operation, strong practicability and high cost-effectiveness. It is mainly applied in neuroscience research to establish experimental models for small animals such as mice, rats and guinea pigs.

Technical Parameters

1. The impact bracket consists of X, Y, Z axes, which can be freely adjusted, locked and rotated

2. Z-direction metal tube height: 300mm with 26 equidistant positioning holes

3. Striker pin specifications: Φ1.0, Φ2.0, Φ3.0, Φ4.0

4. Weight specifications: 5g, 10g, 20g, 40g (optional)

5. Weight height adjustment accuracy: 10mm (hole pitch)

6. Impactor base plate dimensions: L260mm * W165mm * H10mm

7. Spinal cord clamp bracket composed of X, Y, Z axes; the clamping direction can be freely adjusted
