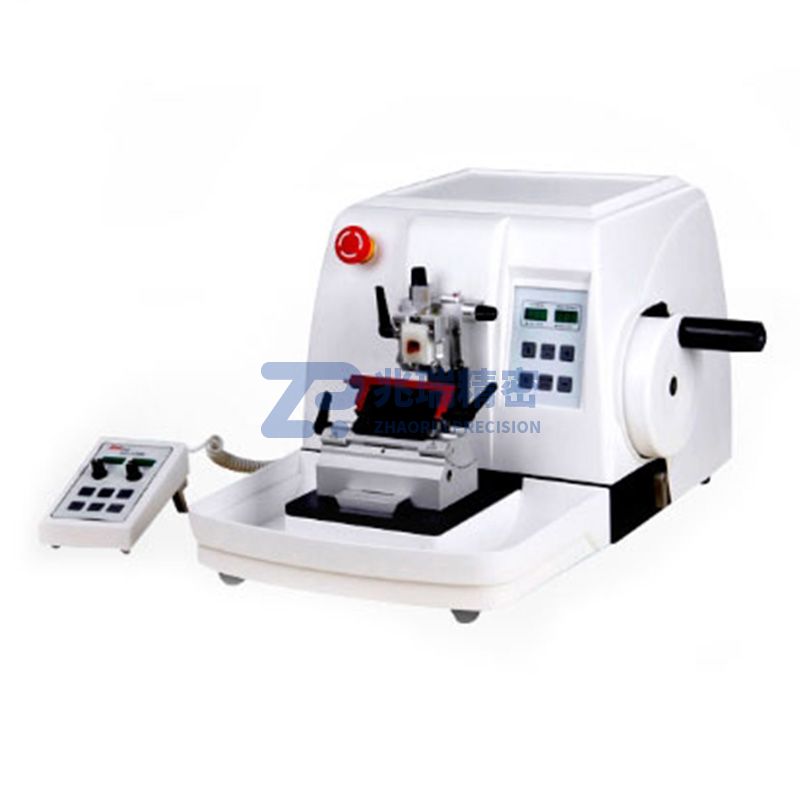

Automatic computer paraffin slicer

1. Adopts internationally advanced lead screw motion system and cross roller guide rail, which is lubrication-free and maintenance-free to ensure slicing accuracy.

2. Imported drive system with functions of trimming, slicing, fast forward, fast reverse and automatic retraction.

3. The transmission feed system is controlled by intelligent program, which can quickly switch between manual/electric slicing modes, and the automatic slicing speed is adjustable.

4. Special precision positioning system, with the red vertex marked as the 0° sample positioning point, and the X/Y axis adjustment is fast, convenient and accurate.

5. Pure green digital display of slice thickness, trimming thickness, slice count, slice speed and retraction value.

6. The easy-to-operate hand controller can be combined with the slicer arbitrarily, and fully automatic slicing or trimming operations can also be completed on the hand controller.

7. Coding type control of slicing, trimming, thickness and speed for convenient and quick operation.

8. Equipped with safety emergency braking system, safety alarm system, drive overload protection and automatic sleep protection system.

9. Handwheel balance fine adjustment system, which can be locked at any position to ensure the safety of the slicing process and free positioning.

10. The tool rest can move left and right to effectively use the blade edge (slicing in three parts).

11. The red blade guard bar safely covers the blade edge, and the blade changing is quick and convenient with the push rod.

12. Easy-to-detach large-capacity waste tank, and the top of the outer cover can store disposable blades and other tools.

13. The sample holder can rotate 360° (optional).

14. Quick and convenient interchangeable specimen holders (paraffin block holder, horizontally embedded cassette holder with precise vision, optional).

15. Wireless foot switch (optional).

Technical Parameters

1. Slice thickness range: 0.25～100μm

0.25～2.5μm with increment of 0.25μm

2.5～5μm with increment of 0.5μm

5～10μm with increment of 1μm

10～30μm with increment of 2μm

30～60μm with increment of 5μm

60～100μm with increment of 10μm

2. Trimming thickness range: 1～600μm

1～10μm with increment of 1μm

10～20μm with increment of 2μm

20～50μm with increment of 5μm

50～150μm with increment of 10μm

150～600μm with increment of 50μm

3. Retraction adjustment range: 0～50μm (adjustable at 0, 5, 10, 15～50; 0 means retraction off)

4. Sample horizontal displacement: 28mm; Sample vertical displacement: 70mm

5. Maximum tool rest base movement: 60mm; Maximum tool rest left-right movement: 23mm

6. Sample positioning: 8° horizontal, 8° vertical, rotatable 90°

7. Minimum division value of slice adjustment: 0.25μm

8. Maximum sample size: 70×70(mm)

9. Feed speed: slow speed 1500um/s; fast speed 3500um/s

10. Automatic slicing speed: adjustable in 0-15 levels

11. Slicing accuracy: ±5%

12. Power supply voltage: AC110V～120V/ AC220V～240V

13. Power: 150VA; Overall weight: 41kg

14. Overall dimensions: 580×475×340(mm)
