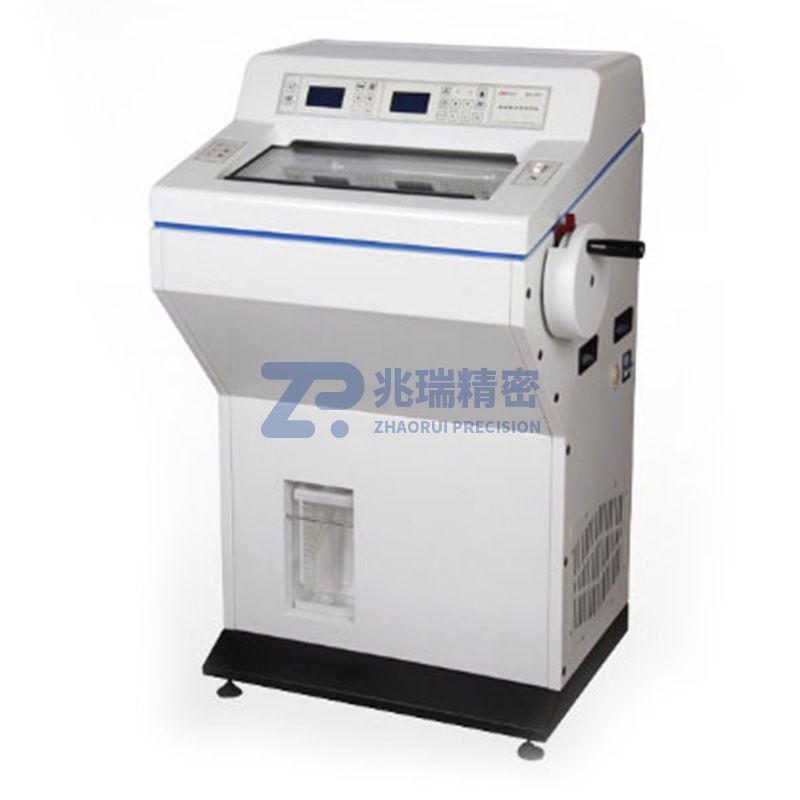

Cryomicrotome

1. The whole machine is designed according to ergonomics and processed by CNC machine tools.

2. Specimen retraction function prevents sample scratching and ensures section integrity.

3. Fast trimming function button enables convenient switching between trimming and slicing modes during operation.

4. Equipped with a counter function that displays total number of sections and total section thickness.

5. The low-temperature refrigeration system adopts a forced refrigeration structure. Original German dual compressors independently cool the freezer compartment, cold stage, tool rest and sample holder respectively, enhancing refrigeration performance and improving cooling speed. The refrigerant uses imported R404A environmentally friendly fluorine-free refrigerant, featuring high refrigeration efficiency, low energy consumption and low noise.

6. Fast cooling mode can reach the operating temperature within 20 minutes after power-on.

7. UV disinfection is adopted for 35 minutes each time. The lighting system uses a low-voltage DC shadowless lighting system.

8. The semiconductor refrigeration function can be turned on and off.

9. Removable heated glass door with no fogging, no water condensation and high transparency.

10. Two defrosting modes are available: timed defrosting and manual defrosting. During defrosting, the UV disinfection lamp automatically turns on to complete disinfection.

11. The microtome unit is located outside the freezer compartment, avoiding the impact of thermal expansion and contraction on the unit and minimizing maintenance requirements.

12. Artificial intelligence interface for easy and intuitive operation.

13. The LCD screen displays total number of sections, total section thickness, section thickness, specimen retraction value, temperature control, date, time, temperature, timed on/off and other parameters respectively.

14. Humanized sleep function: When sleep mode is selected, the temperature of the freezer compartment is automatically controlled between -1℃ and -9℃. After canceling sleep mode, the slicing temperature can be reached within 15 minutes.

15. Keyboard lock function prevents misoperation.

16. Handwheel locking function with 16 positioning points.

17. The tool rest base can be adjusted horizontally and vertically to accommodate blades of various brands.

18. The blade holder is equipped with a red protective bar covering the entire length of the blade to protect the user. The blade push rod facilitates blade replacement.

19. Spacious cold stage can hold 17 specimens simultaneously, with 2 semiconductor refrigeration positions.

20. Equipped with a variable-speed dust suction device to absorb debris and keep the chamber clean.

21. 12-degree universal rotating tissue adjustment device for easy adjustment of sample section angle.

22. Temperature sensor self-test function can automatically detect sensor fault status.

Technical Parameters

1. Freezer compartment temperature control range: -10℃～-40℃

2. Chuck temperature control range: -10℃～-40℃

3. Time for cold stage temperature to drop to -40℃: 60 minutes

4. Minimum temperature of cold stage: -45℃

5. Additional semiconductor refrigeration temperature of cold stage: -60℃

6. Semiconductor working time: 15 minutes

7. Maximum sample size: 35×35(mm)

8. Specimen vertical movement stroke: 60mm

9. Specimen horizontal movement stroke: 20mm

10. Electric coarse feed speed: 2 gears (0.7mm/s; 0.35mm/s)

11. Section thickness: Adjustable from 1μm to 100μm

12. 1μm to 20μm with 1μm increment

13. 20μm to 40μm with 2μm increment

14. 40μm to 100μm with 5μm increment

15. Trimming thickness: Adjustable from 10μm to 400μm

16. 10μm to 50μm with 5μm increment

17. 50μm to 100μm with 10μm increment

18. 100μm to 400μm with 50μm increment

19. Specimen retraction value: Adjustable from 0 to 80μm with 5μm increment

20. Power supply voltage: AC110V～120V/ AC220V～240V

21. Total machine power: 600W

22. Total machine net weight: 115kg

23. Overall dimensions: 650×804×160(mm)
