The small animal anesthesia machine is essential basic anesthesia equipment for animal experiments. It is suitable for almost all surgeries on various animals such as rats, mice, dogs, cats, pigs, monkeys, rodents, reptiles, and birds. Combined with our company's related air sources, induction boxes, anesthesia masks, and gas recovery devices, it provides a complete set of small animal gas anesthesia solutions, which is simple to operate, safe and reliable. In developed countries, gas inhalation anesthesia is widely used in animal experiments, such as experiments on rodents, dogs, monkeys and other animals.

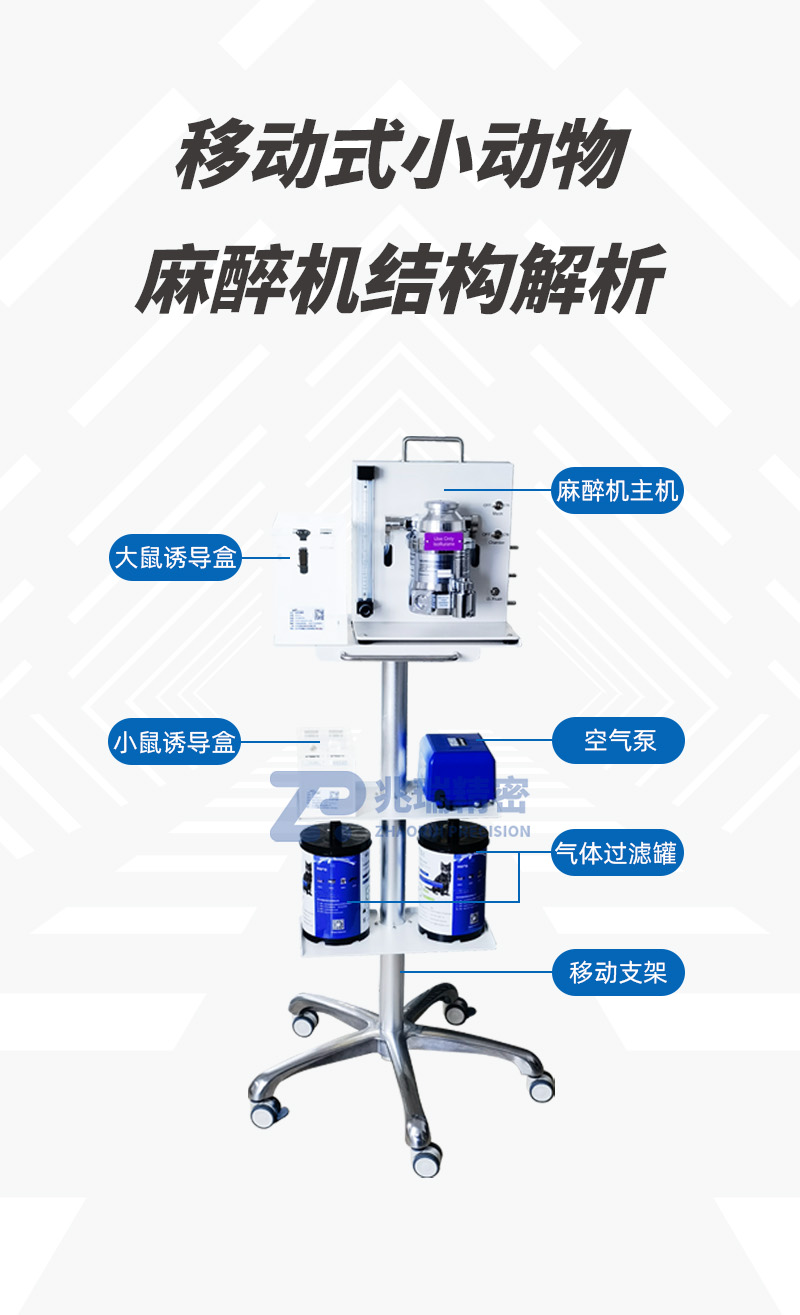

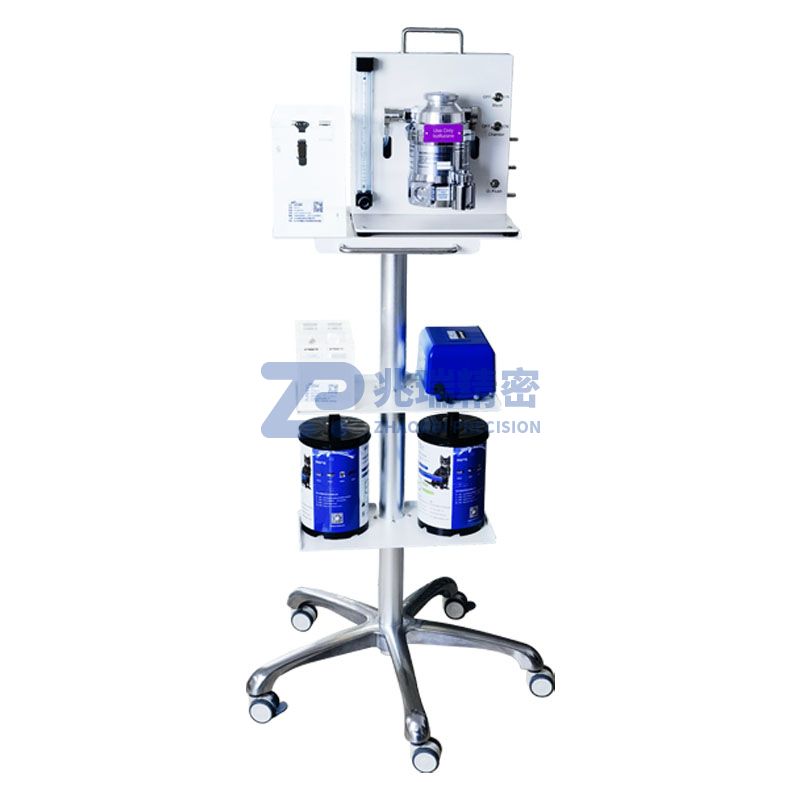

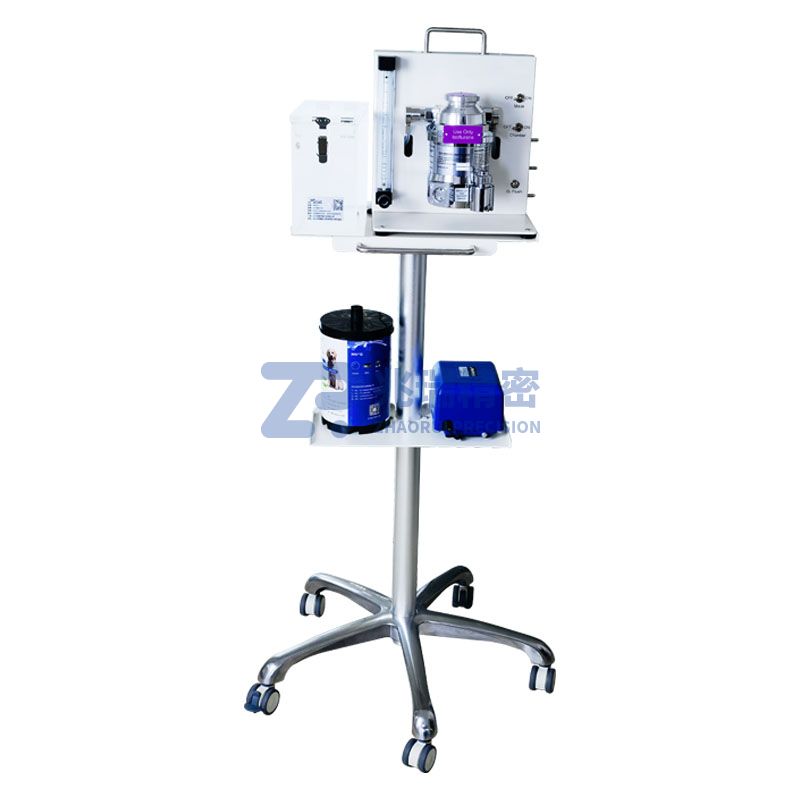

The Z5198 mobile small animal anesthesia machine is equipped with a mobile stand on the basis of the mobile small animal anesthesia machine, making the equipment available in both desktop/mobile forms to meet customer needs. The anesthesia machine is mainly composed of an anesthesia vaporizer and a controller part. It uses the air flow of the air pump as power to mix air with isoflurane in the anesthesia vaporizer, which then enters the animal's body through a mask or ventilator. The anesthesia machine has the characteristics of high safety, precise control of anesthetic dosage, reversible anesthetic effect, and monitorable status, which can greatly improve work efficiency.
Performance Characteristics
1. Adopts a single breathing circuit and non-recycling respiratory system to reduce dead space.
2. Precise glass tube oxygen flowmeter with precise adjustability, suitable for low-flow anesthesia of small animals.
3. Selects the classic TECH 3 anesthesia vaporizer model for isoflurane anesthesia, with stable output, good airtightness, safety and reliability.
4. Precise design ensures the accuracy of output concentration, unaffected by changes in flow rate, temperature, flow velocity and pressure.
5. Precise scale adjustment ensures output accuracy
6. Safety locking device prevents accidental volatilization of anesthetics
7. Large viewing window for easy observation of drug usage level
8. Simple drug pouring device for user convenience
9. Adopts classic TECH3 anesthesia vaporizer technology, with the minimum anesthetic vaporization concentration adjustable to 0.15%
10. Output concentration is unaffected by changes in flow rate, pressure and temperature, accurate and reliable
11. Equipped with a safety locking device to prevent anesthetic leakage and accidental use of wrong anesthetics
12. Adopts classic TECH3 anesthesia vaporizer technology, with the minimum anesthetic vaporization concentration adjustable to 0.15% to meet different customer needs
Technical Parameters
| Applicable Animal Range | Animals under 7kg such as rats, mice, guinea pigs, rabbits, cats, etc. |
| Vaporizer Type | Classic TECH3 Anesthesia Vaporizer |
| Output Concentration Range | Isoflurane:0-5% ; Sevoflurane：0-5% |
| Output Accuracy | ±0.02(0-1%); ±0.1(1-5%) |
| Vaporizer Capacity | ＞280ml |
| Anesthesia for One or Multiple Animals | Optional to operate 2 to 6 animals simultaneously |
| Operating Environment of Anesthesia Machine | |
| Ambient Temperature | 4℃-40℃(40℉- 104℉) |
| Ambient Humidity | 20%-80%RH |
| Input Air Pressure | ＜0.2mpa |
| Flowmeter Selection | 0-1L/min (single animal); 0-4L/min (multiple animals) |
| Air Supply Method | Air Pump |
| Host Dimension (HxWxD) | 27.0x16.0x30.0cm(10.63x6.30x11.81in) |
| Host Weight | 7.0kg(15.43lbs) |
| Warranty Period | 1 Year |
| Induction Box Dimension (HxWxD) | |
| Mouse Induction Box | 255x195x120, air inlet and outlet at the upper middle of the back |
| Rat Induction Box | 180x150x100, air inlet and outlet at the upper middle of the back |
| Rat Induction Box (A) | 255x195x120, air inlet at the upper front, air outlet at the lower back |
| Rat Induction Box (B) | 255x195x120, air inlet at the upper front, air outlet at the lower back (cover with holes) |
| Customizable Induction Box | Induction box can be customized according to experimental needs |
