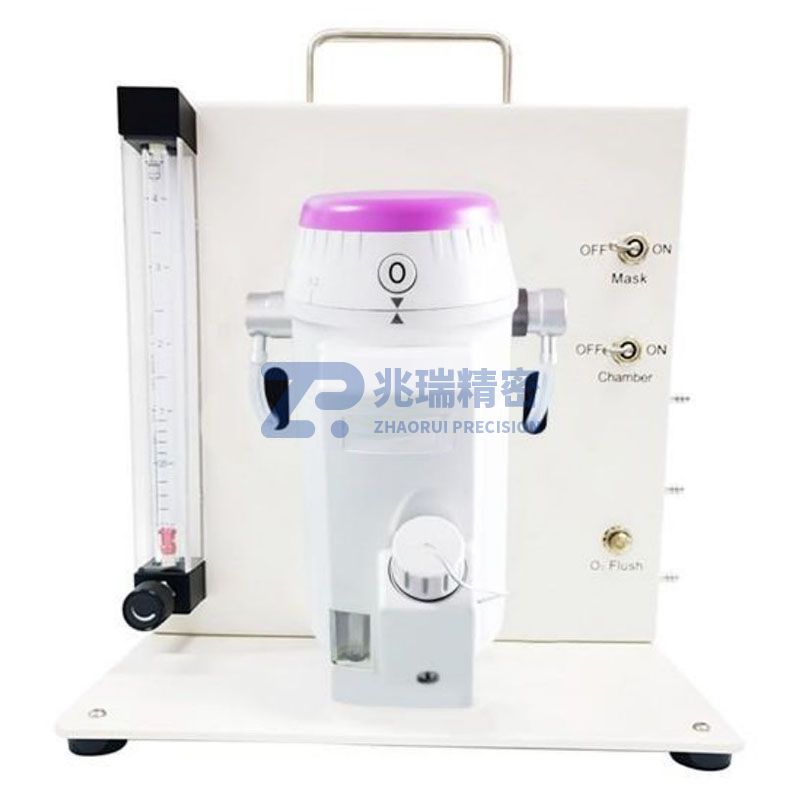

Z5280 desktop small animal anesthesia machine

Small animal anesthesia machine is an essential basic anesthesia equipment for animal experiments. It is suitable for almost all surgeries of various animals such as rats, mice, dogs, cats, pigs, monkeys, rodents, reptiles and birds. Equipped with our company's related air source, induction box, anesthesia mask and gas recovery device, it provides a complete set of small animal gas anesthesia solutions, which is simple to operate, safe and reliable. In developed countries, gas inhalation anesthesia is very common in animal experiments, such as rodents, dogs, monkeys and other animal experiments.

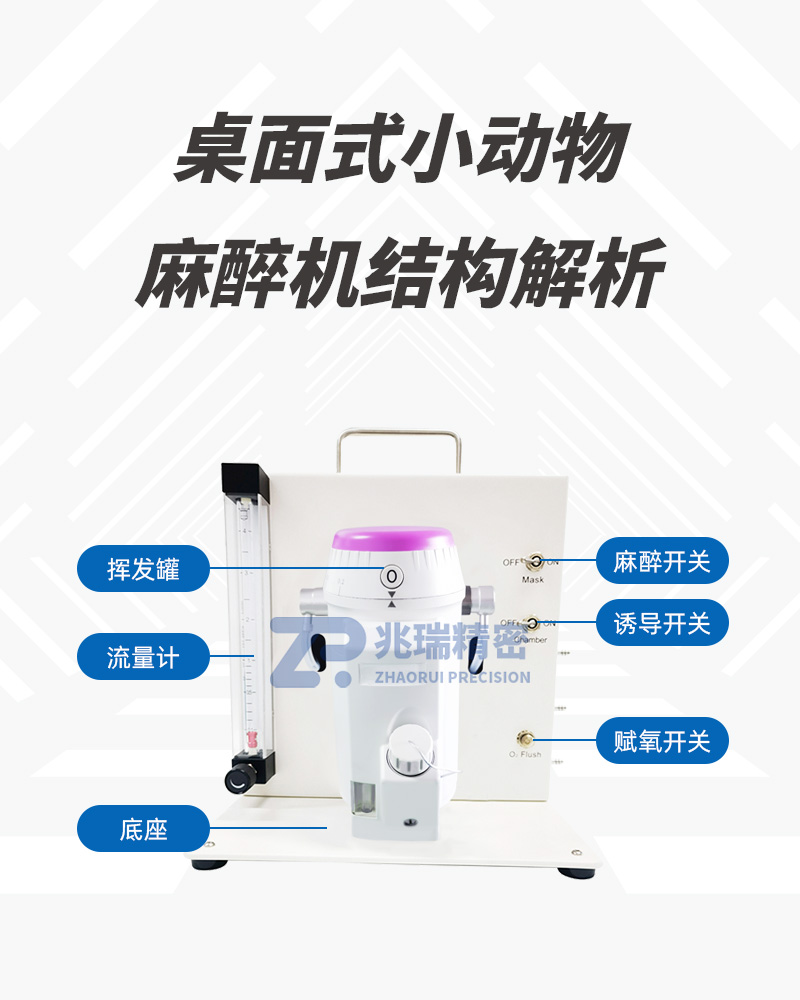

Z5280 desktop small animal anesthesia machine can be equipped with a mobile bracket, making the equipment available in both desktop/mobile forms to meet customer needs. The anesthesia machine is mainly composed of an anesthesia vaporizer and a controller part. It uses the air flow of the air pump as power to mix air with isoflurane in the anesthesia vaporizer and then enter the animal's body through a mask or ventilator. The anesthesia machine has the characteristics of high safety, precise control of anesthesia dosage, reversible anesthesia effect, and monitorable status, which can greatly improve work efficiency.

Performance Characteristics

1. Adopt single breathing circuit, no recirculation respiratory system, reduce dead space.
2. Precise glass tube oxygen flowmeter, precisely adjustable, suitable for low-flow anesthesia of small animals.
3. Select the classic TECH 3 anesthesia tank model isoflurane anesthesia vaporizer with stable output, good airtightness, safety and reliability.
4. Precise design ensures the accuracy of output concentration, not affected by changes in flow, temperature, flow rate and pressure.
5. Precise scale adjustment ensures output accuracy
6. Safety locking device prevents accidental volatilization of anesthetics
7. Large viewing window for easy observation of drug usage
8. Simple pouring device for user convenience
9. Adopt classic TECH3 anesthesia tank technology, the minimum anesthesia vaporization concentration adjustment is 0.15%
10. Output concentration is not affected by changes in flow, pressure and temperature, accurate and reliable
11. Equipped with safety locking device to prevent anesthetic leakage and accidental use of wrong anesthetics
12. Adopt classic TECH3 anesthesia tank technology, the minimum anesthesia vaporization concentration adjustment is 0.15% to meet different customer needs

Technical Parameters

Ordering Information

Optional Configurations

Selection Guide
