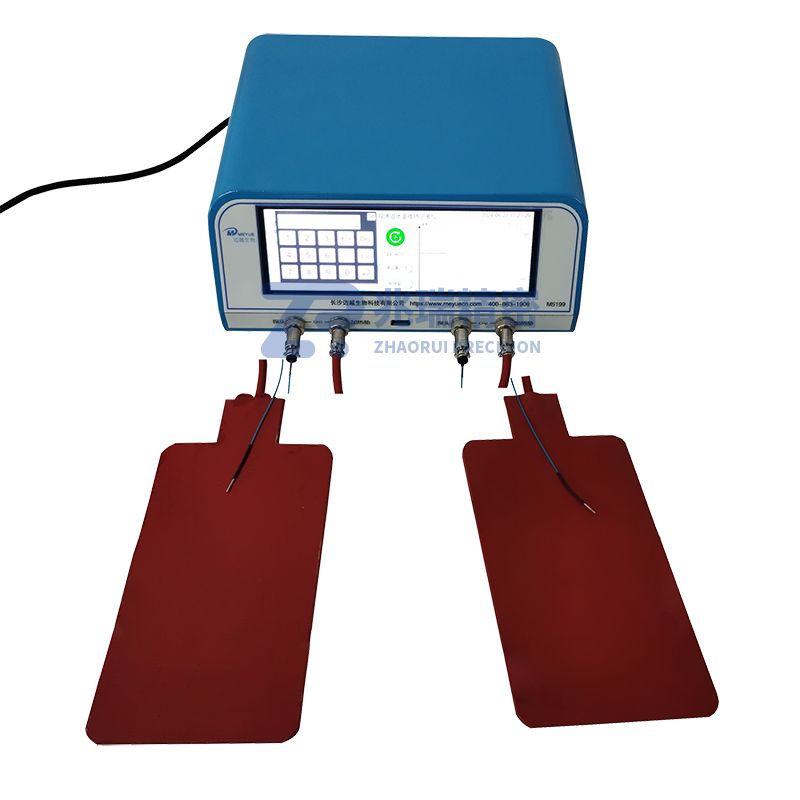

The dual-channel small animal temperature maintenance recorder integrates functions of temperature measurement, temperature control, heating and temperature recording, designed to maintain the normal body temperature of experimental animals. This instrument features high measurement and control accuracy, fast response speed, stable and reliable operation, with no electromagnetic interference to experimental animals.
Performance Features
1. Intelligent temperature control with high precision and good reliability.
2. Far-infrared heating similar to sunlight, heat is easily absorbed by the animal body, safe and comfortable.
3. Adopts safe DC low-voltage heating.
4. Continuously displays the set temperature and measured actual temperature.
5. Can set minimum and maximum alarm temperature prompts.
6. Equipped with sound alarm and visual alarm prompts.
7. Two real-time display modes: digital display and curve waveform.
8. Touch adjustment keys for easy operation.
9. The surface of the constant temperature blanket is easy to clean.
10. Adopts large-capacity SPI Flash with high quality guarantee, no need to worry about data loss;
11. Automatically overwrites data when full, no manual data clearing required;
12. Displays "USB Connected" when a USB drive is inserted and "USB Removed" when it is pulled out;
Technical Parameters
1. Number of Channels: 2 Channels
2. LCD Touch Screen Size: 6.8 inches, Resolution: 1280×400
3. Temperature Measurement Range: 0～50℃, Display Accuracy: 0.1℃
4. Temperature Control Range: 0～50℃, Display Accuracy: 0.1℃
5. Temperature Recording Interval Range: 10-999S
6. Number of Temperature Recording Entries: 1000 Entries
7. Stainless Steel Rectal Temperature Sensor: 2mm diameter round head, no irritation to animals
8. Host Dimensions: 270mm×200mm×110mm
9. Hot Plate Dimensions: 250mm (Length) × 120mm (Width)
10. Sampling Speed: 0.1 Second
11. Sound and Visual Alarm Function: Yes
12. Data Export Method: USB Drive Export, Excel Format
