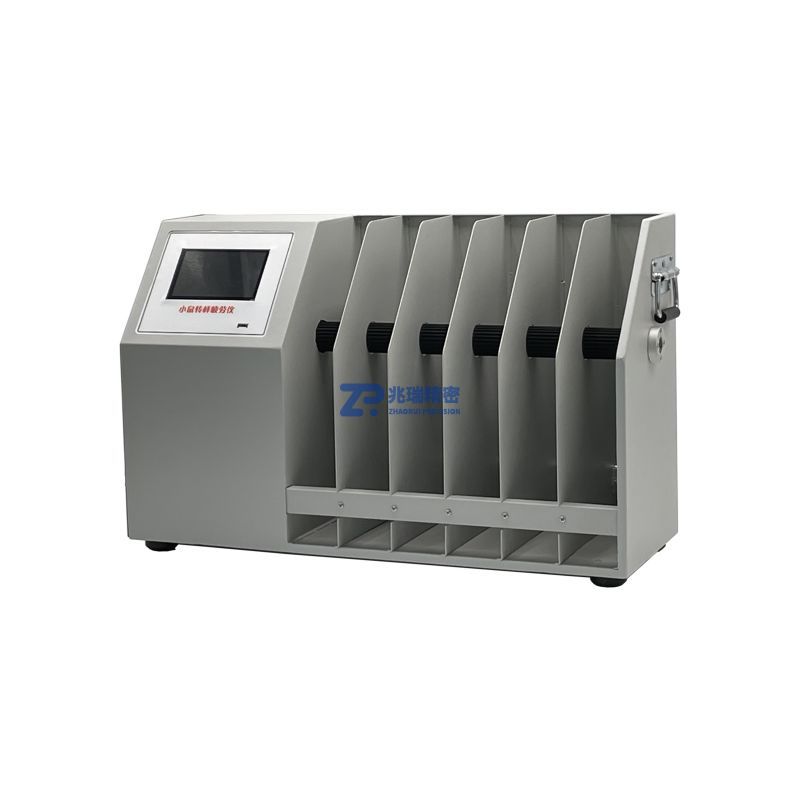

Z8001 Mouse Rotarod Fatigue Tester

The mouse rotarod fatigue tester is an ideal instrument for screening, identification and detection. It can be used for fatigue experiments, motor coordination ability tests, skeletal muscle relaxation experiments, nerve inhibition experiments; as well as other experiments that need to detect effects through motor methods, such as the impact of toxicity on motor ability, the impact of the lack of certain substances in the body on motor ability, and the impact of cardiovascular and cerebrovascular conditions on motor ability, etc.

Technical Parameters

1. Rotating rod diameter: 35mm
2. Channel width: 60mm
3. Number of channels: 1~6 channels (expandable to 12 channels)
4. Rotation speed range: 1~120 rpm
5. Rotation speed adjustment unit: 1 rpm
6. Rotation speed grading: Initial speed, first-stage acceleration, second-stage acceleration, etc.
7. Experiment time range: 1~59999 minutes
8. Forward and reverse mode: Forward and reverse
9. Display mode: 5-inch touch screen
10. Data export function: With USB interface, data can be imported into U disk
11. Internal storage: ≥200 groups of data
12. Operating environment temperature: 0℃—40℃
13. Input voltage: 220V 50Hz
14. Timing mode: Automatic timing
15. Cascade function: With cascade function
16. Recording parameters: Drop speed, drop time, drop distance
17. Data upload function: Yes (server configuration required by customer)
18. Overall dimensions: 830*310*520mm
19. Weight: 10Kg
