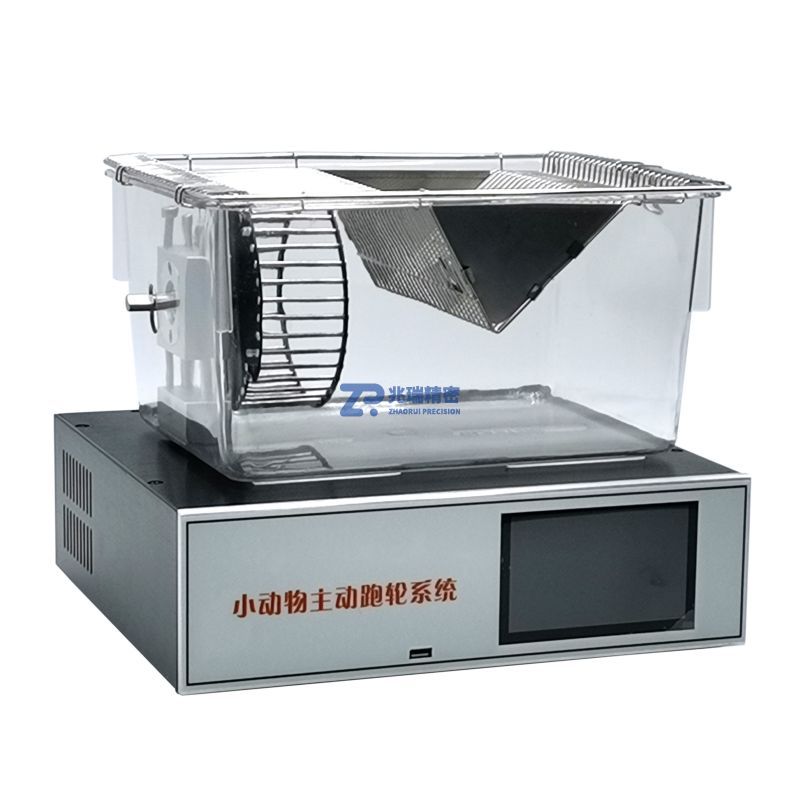

Z8003 Mouse Voluntary Running Wheel System

The mouse voluntary running wheel system is driven by the spontaneous movement of the animals themselves to rotate the running wheel. In this configuration, information about the long-term activities of animals in the cage, such as the rotation direction, number of rotations, and cumulative total travel distance of the running wheel, can be recorded by a length meter using an encoder. This device consists of a rotating wheel assembly, a cage body, and a rotation direction and speed sensor. The instrument is an experimental tool for studying the living rhythms of animals. A feeder can also be optionally equipped for exercise reward experiments and other studies.

Technical Parameters

1. Parameter display mode: 5-inch LCD touch screen
2. Experimental data: Experimental time, total distance, total number of laps, clockwise laps, counterclockwise laps, parameters within unit time periods
3. Experimental time range: 0~400:00 (hours:minutes)
4. Encoder resolution: 360P/R
5. Data storage capacity: 1000 rows
6. Data output: USB, exportable to U disk
7. Chassis material: Alloy
9. Mouse running wheel specification: Diameter 120mm, width 50mm
10. Equipment power supply: 110V~220V 50HZ
