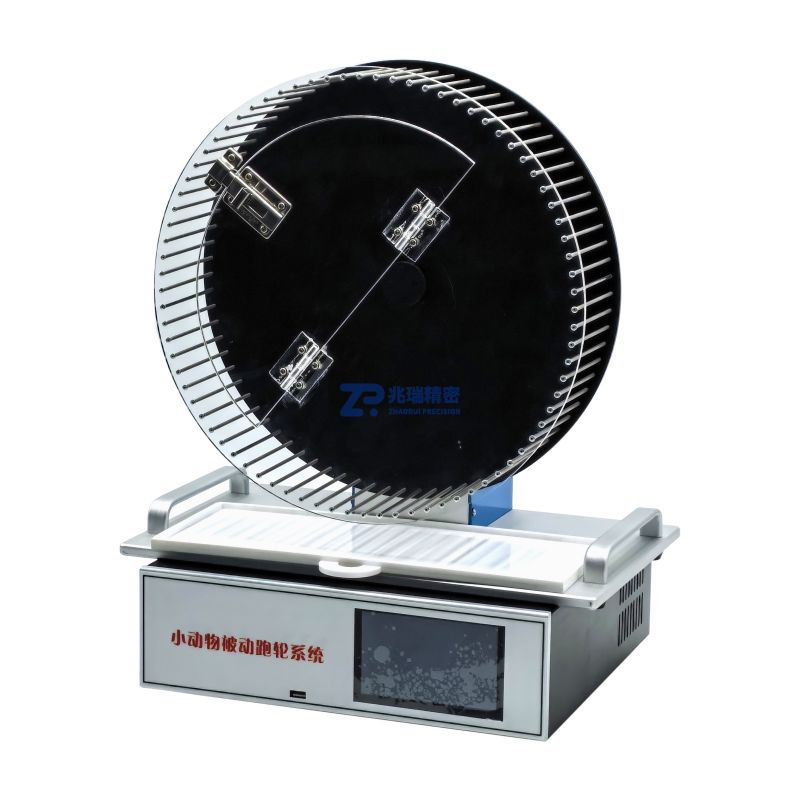

Z8005 Passive Running Wheel System For Rats And Mice

The passive running wheel system for rats and mice is mainly used in forced exercise experiments on rats and mice. The equipment has strong flexibility and a wide range of applications. It is equipped with a hanging window for easy placement and removal of animals. The exercise time, rest time, and rotation speed can all be set.

Technical Parameters

1. Material of running wheel structure: Alloy suspension structure
2. Fully transparent observation window with side opening door
3. Display mode: 5-inch touch screen
4. Host size: 335×3100×110mm
5. Inner diameter of running wheel: 340mm, width: 90mm
6. Speed range: 1 - 30 rounds/min
7. Experiment time: 00:00:00~999:99 (h/min)
8. Running duration: 00:00~999:99 (min/s)
9. Rest duration: 00:00~999:99 (min/s)
10. Internal storage of experimental data: Available
11. Equipment power supply: 220V
12. Data export: USB flash drive export
13. Experimental data: Experiment time, running distance
14. With perpetual calendar, time can be set manually
15. Weight: 5kg
