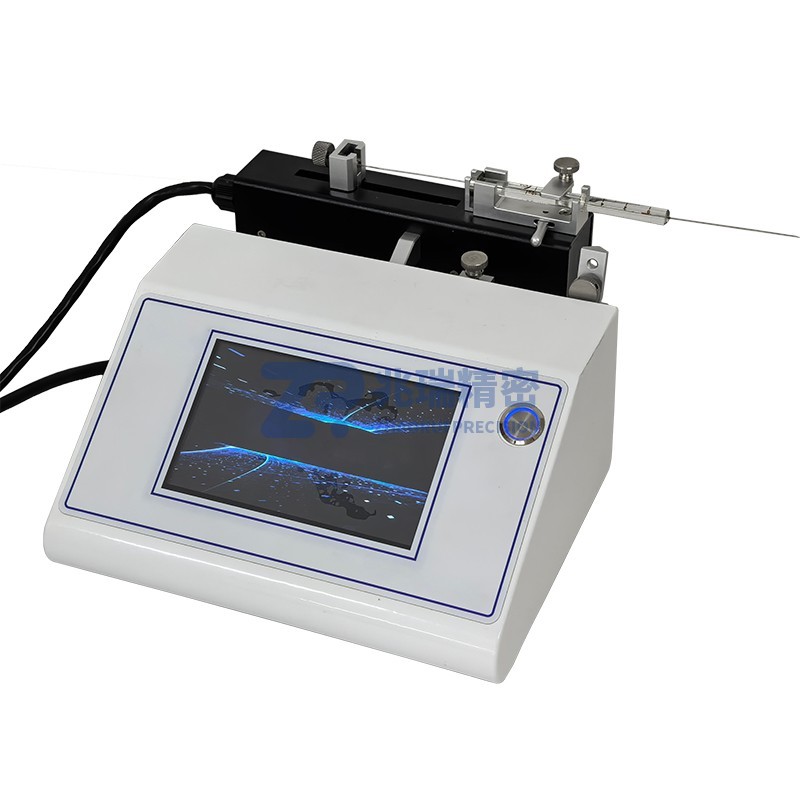

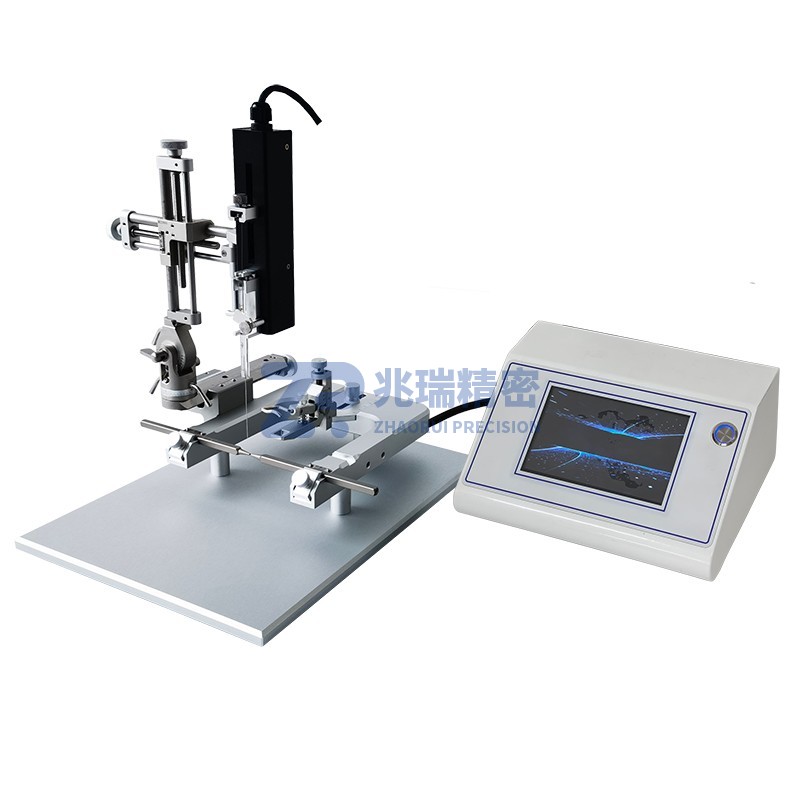

Z5258 Micro Laboratory Syringe Pump features high-definition touch screen operation, Ditronstep micro-step control system and mute design. It is used in animal experiments in conjunction with brain stereotaxic instrument or micromanipulator.
Technical Parameters
1. Working Modes: Infusion, Extraction, Infusion/Extraction, Extraction/Infusion, Continuous, Multiple Infusion
2. Touch Display: 800*480 5-inch high-definition touch screen, easy to operate with clear information
3. Language Options: Chinese and English, 2 languages available
4. Maximum Stroke: 70mm
5. Stroke Control Accuracy: Error ≤±0.1%
6. Syringe Specifications: 0.5μL～1000 μL
7. Linear Thrust: ≥25N
8. Linear Speed Range: 0.12μm/min ～121.92mm/min
9. Step Resolution: 0.190μm/μstep
10. Online Speed Adjustment: Current flow rate adjustable during operation
11. Calibration Function: Supports syringe calibration and stores calibration coefficients
12. Syringe Selection: Built-in main domestic and foreign manufacturers, main models of syringes selectable, and supports customization
13. Parameter Setting: Liquid volume, flow rate, infusion time, extraction time, interval time, infusion times can be set and stored
14. Power-on Operation: Stores current dynamic operation parameters when power off, continues to run after power on again
15. Prompt Function: Real-time display of available maximum/minimum flow rate; dynamic display of operation parameters
16. Reminder Function: Sound alarm prompt when running to the set target liquid volume
17. Thrust Setting: Appropriate thrust can be set according to syringe specifications
18. External Control Function: Start/stop control by external signal or contact, control methods: high level (5-24v), low level, pulse optional
19. Foot Switch: 6.35 foot switch socket, realize start/stop control through foot switch
20. Communication Control: RS485/USB optional, touch setting of address and baud rate
21. Status Output: Start/stop, direction
22. Applicable Power Supply: AC 90V～264V 50/60Hz
23. Working Environment: Temperature: 0～40℃; Humidity: 20%-80% RH without condensation
24. Storage Environment: Temperature: -10～60℃; Humidity: 20%-80% RH without condensation
25. Protection Level: IP31
26. Product Dimensions (mm): Controller: 240*149*87.5 (mm); Execution Structure: 163*34*34 (mm)
Applicable Syringes
| Optional Syringe Capacity (μL) | Syringe Inner Diameter (mm) | Reference Flow Rate Range (nL/min-mL/min) |
| 0.5 | 0.10 | 0.96～0.96 |
| 1 | 0.15 | 2.15～2.15 |
| 2 | 0.20 | 3.83～3.83 |
| 5 | 0.35 | 11.73～11.73 |
| 10 | 0.50 | 23.94～23.94 |
| 25 | 0.80 | 61.28～61.28 |
| 50 | 1.10 | 115.86～115.86 |
| 100 | 1.60 | 245.13～245.13 |
| 250 | 2.30 | 506.55～506.55 |
| 500 | 3.25 | 1011.42～1011.42 |
| 1000 | 4.61 | 2035.01～2035.01 |
Ordering Information
| Model | Name | Stroke (mm) |
| Z5126 | Manual Micro Syringe Pump | 0-25 |

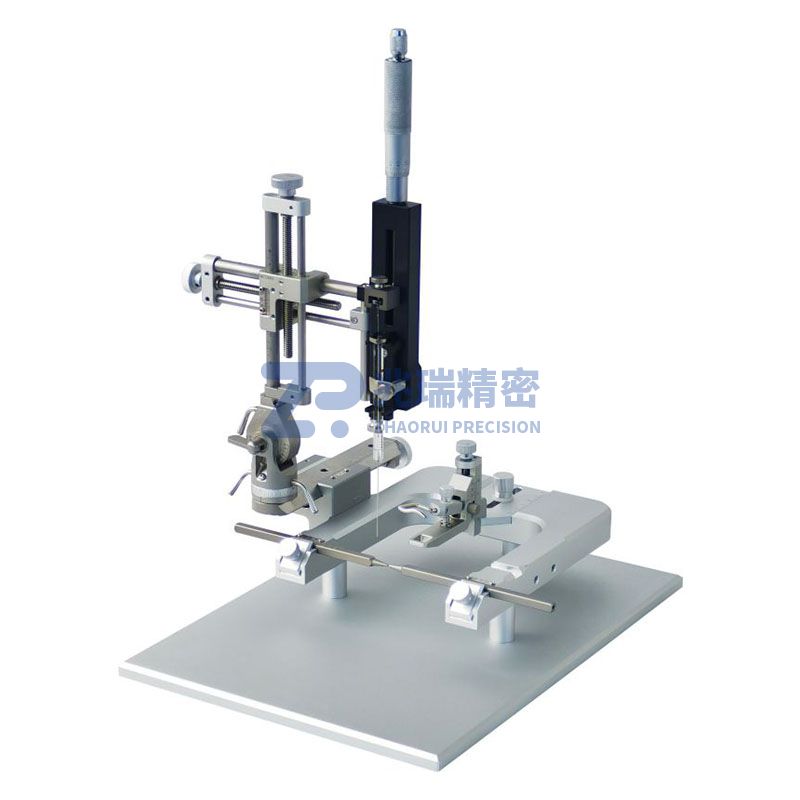

| Z5136 | Manual Micro Syringe Pump | 0-50 |
| Z5258 | High Precision Micro Syringe Pump | 0-70 |

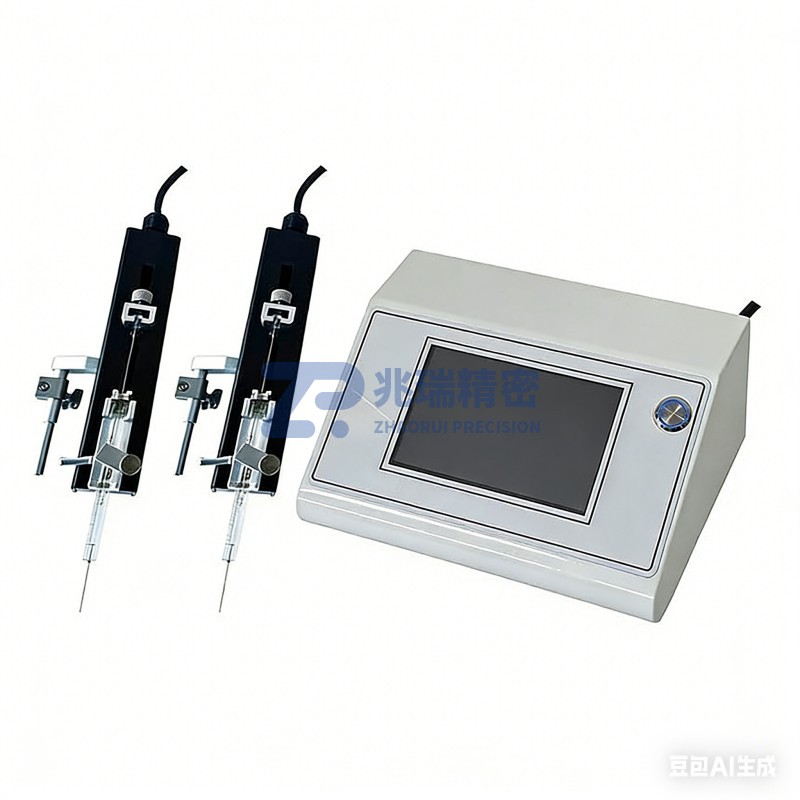

| Z5259 | Two-channel High Precision Micro Syringe Pump | 0-70 |

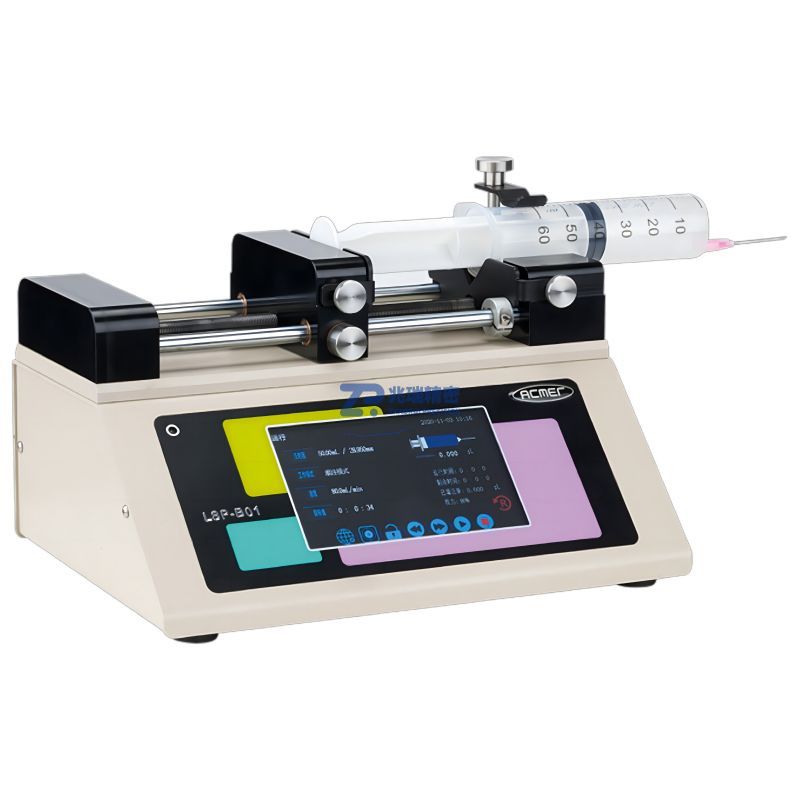

| Z5260 | Micro Syringe Pump | 0-150 |

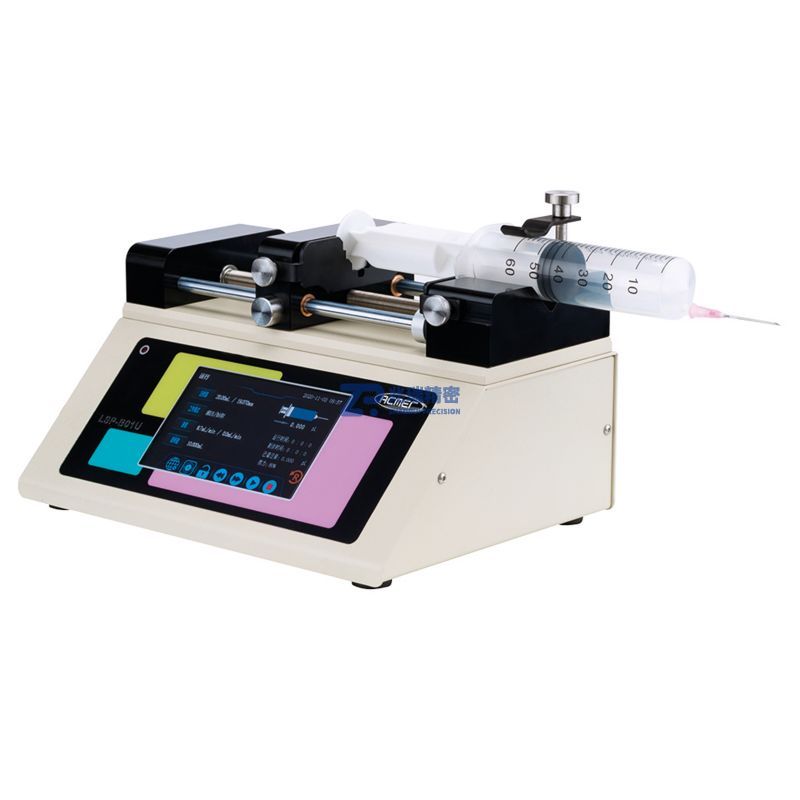

| Z5261 | Two-channel Micro Syringe Pump | 0-150 |

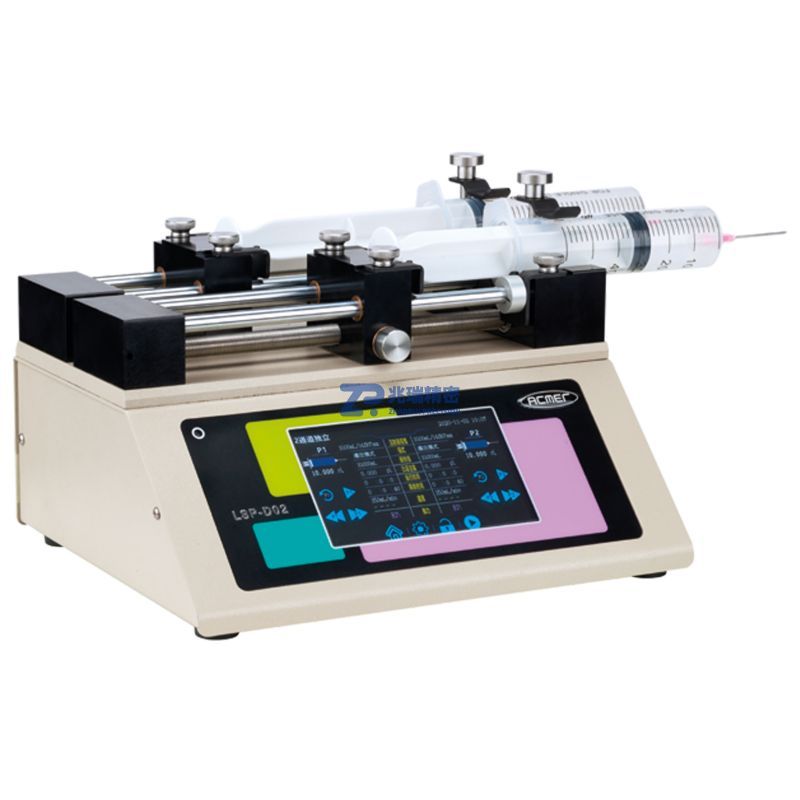

| Z5262 | Four-channel Micro Syringe Pump | 0-150 |
| Z5263 | Ultra-precision Micro Syringe Pump | 0-150 |
| Z5264 | Two-channel Independent Control Micro Syringe Pump | 0-150 |
