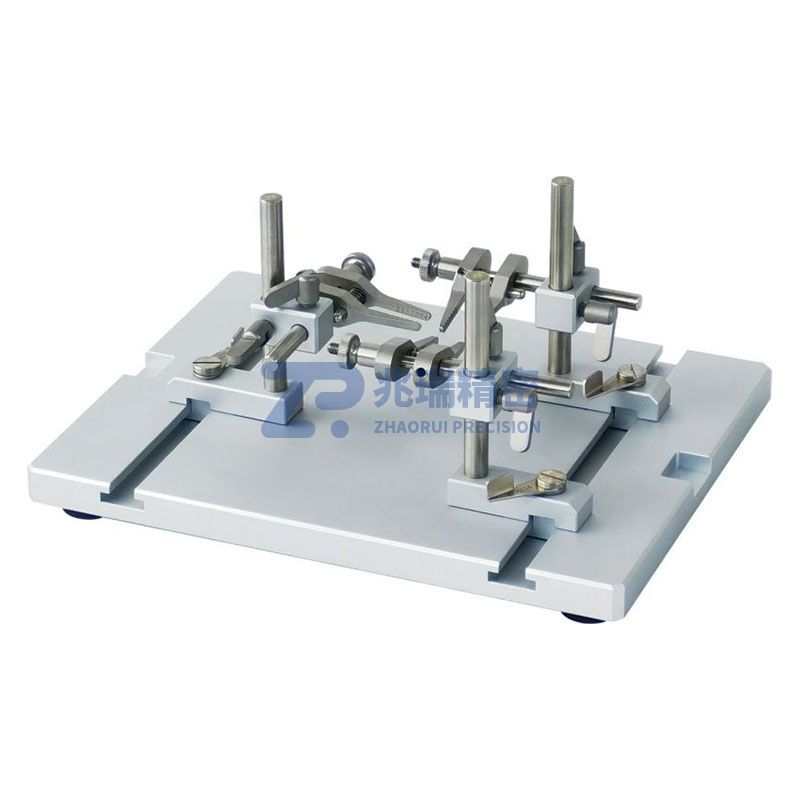

The Spinal Cord Adapter can be used in conjunction with stereotaxic instruments and craniocerebral injury impactors. It is designed for spinal fixation of small animals and supports multi-purpose research on small animal models.
Technical Parameters
1. Adapter base plate dimensions: 210*165*13 (mm)
2. This product can be directly fixed on the base plate of small animal stereotaxic instruments for use
3. Spinal clamp design principle: Cooperates with springs and lock nuts; the clamping force is moderate and will not harm small animals
4. The spinal clamp can be adjusted 150mm back and forth through T-slot, and 55mm up and down through vertical rods
Ordering Information
| Model | Name | Dimensions | Remarks |
| Z5096 | Spinal Cord Adapter | Base plate + 3 sets of movable clamps | 2 or 3 sets of clamps optional |
| Z5109 | Craniocerebral Injury Impactor | Bracket + stereotaxic instrument base plate mechanism + accessories | Stereotaxic instrument |
| Z5110 | Standard Stereotaxic Instrument and Craniocerebral Injury Instrument | Complete set of bracket + stereotaxic instrument + accessories | Stereotaxic instrument |
| Z5111 | Free Fall Bracket | Bracket + accessories | Stereotaxic instrument |
| Z5112 | Standard Stereotaxic Instrument and Craniocerebral/Spinal Cord Injury Instrument | Bracket + stereotaxic instrument + adapters + accessories | Stereotaxic instrument |
| Z5113 | Independent Craniocerebral/Spinal Cord Injury Instrument | Bracket + base plate + adapters + accessories | Stereotaxic instrument |
